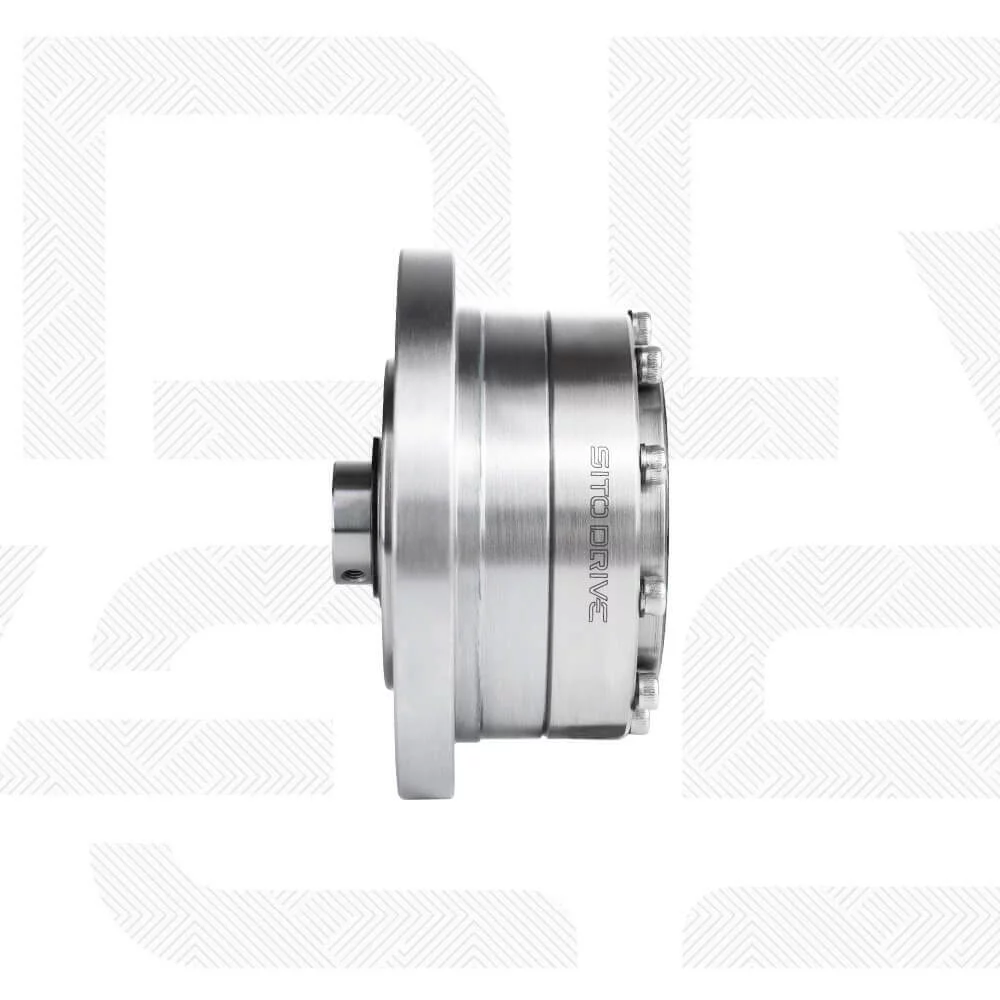

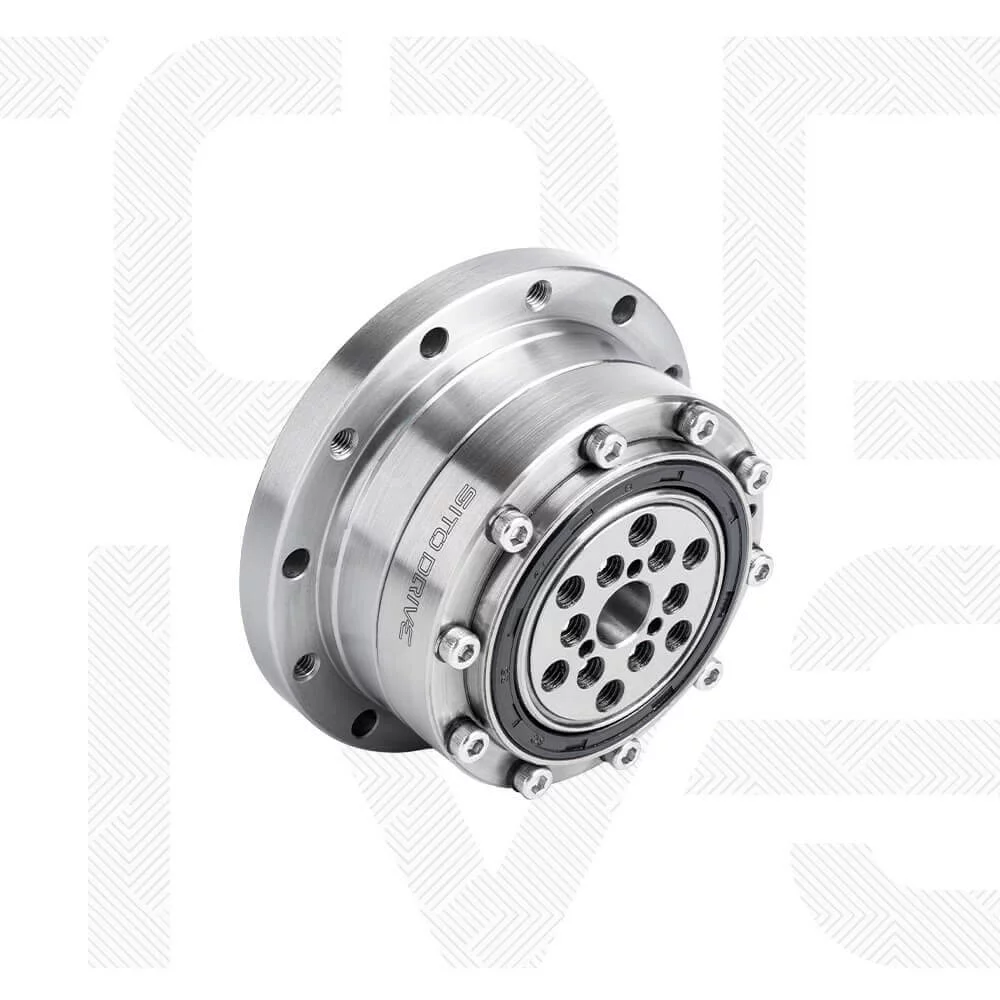

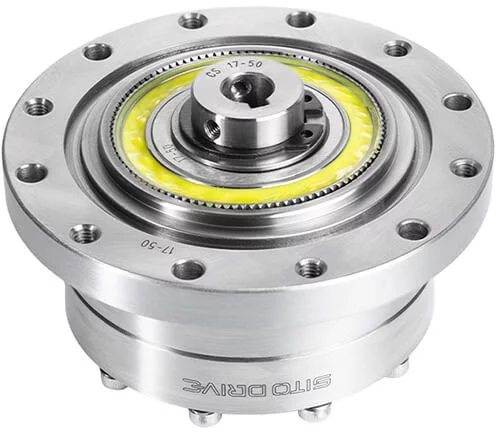

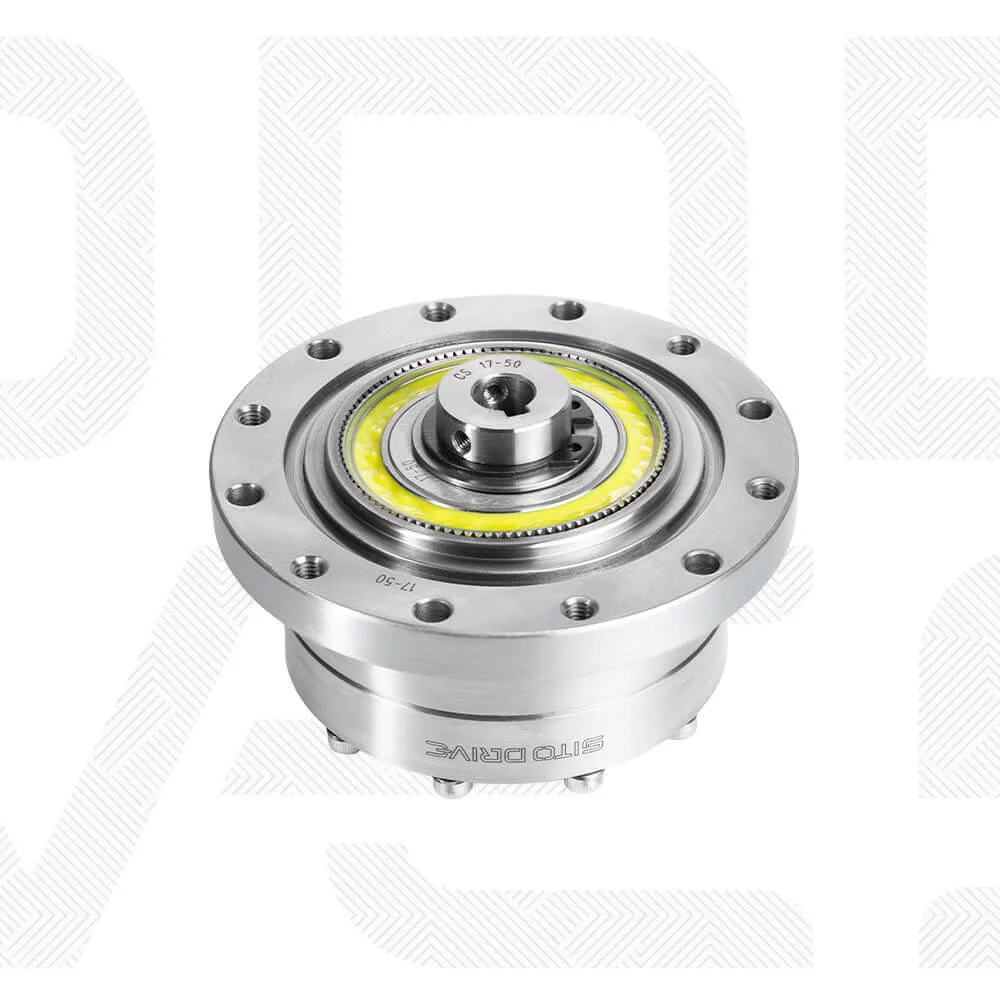

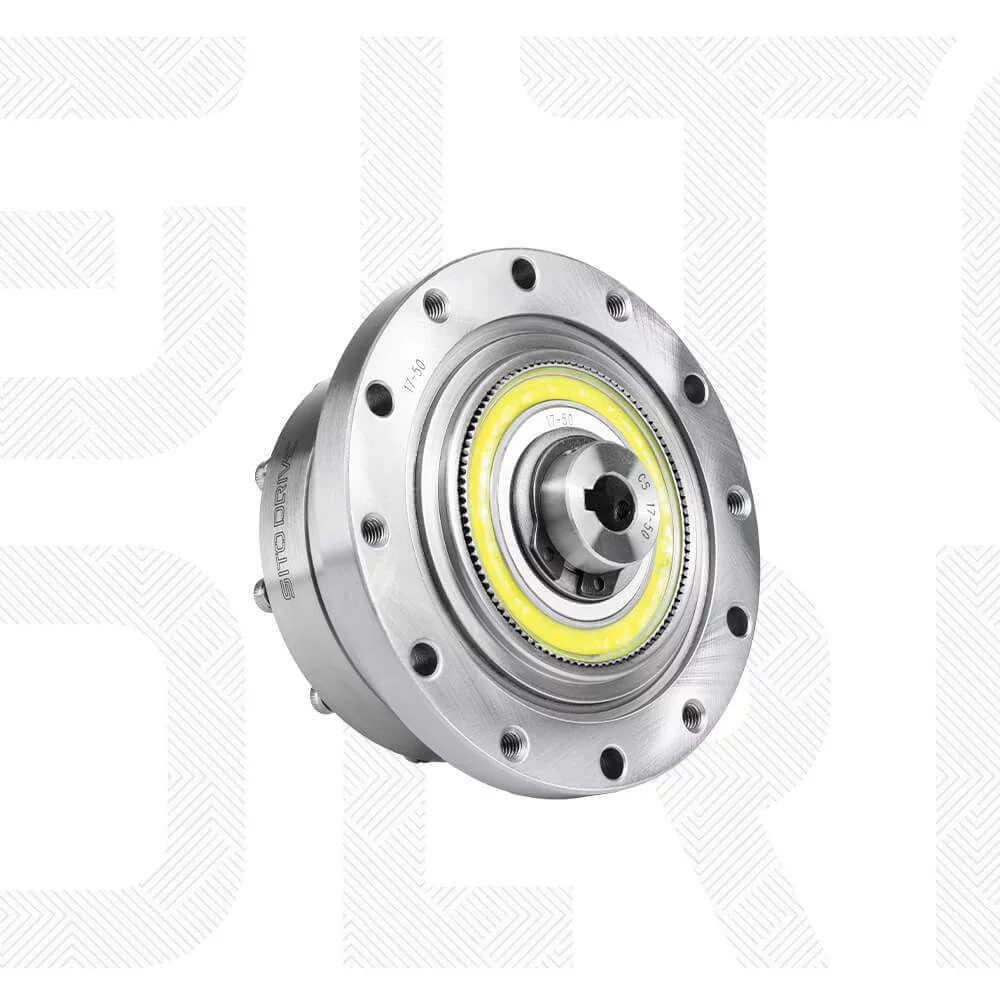

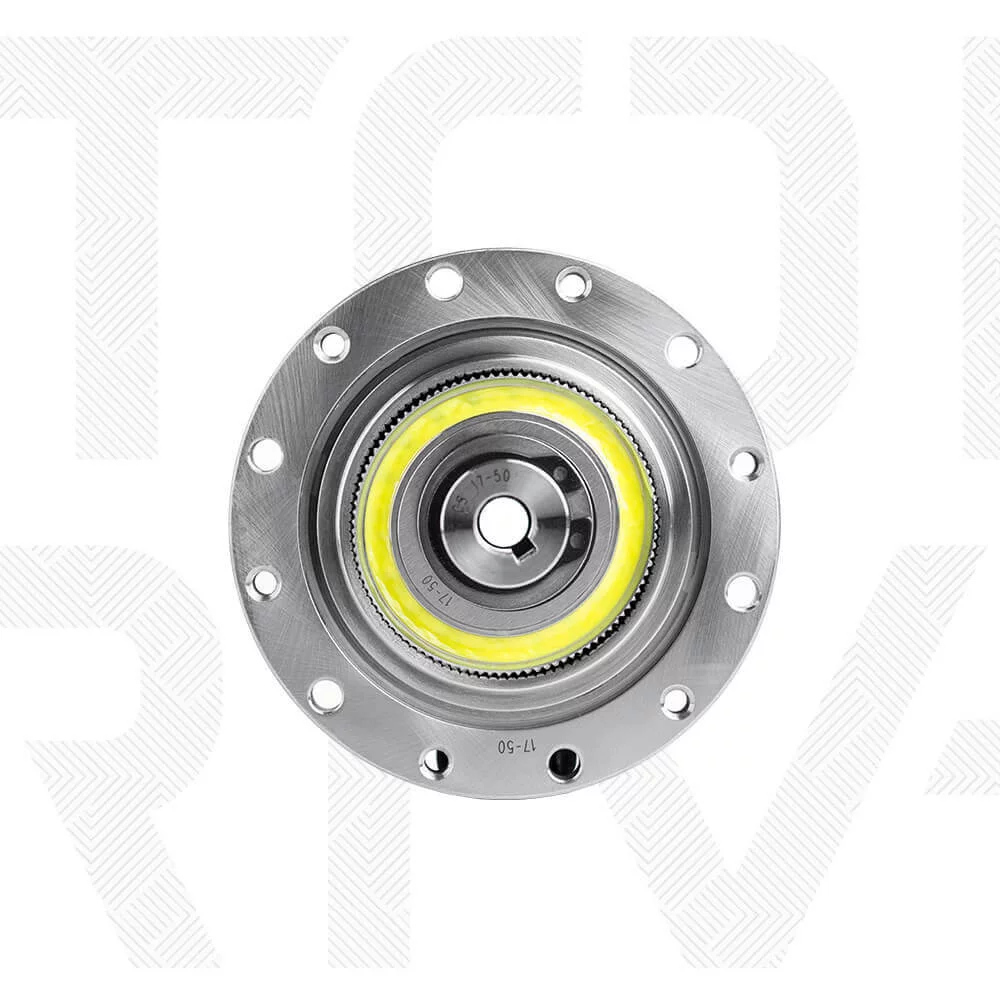

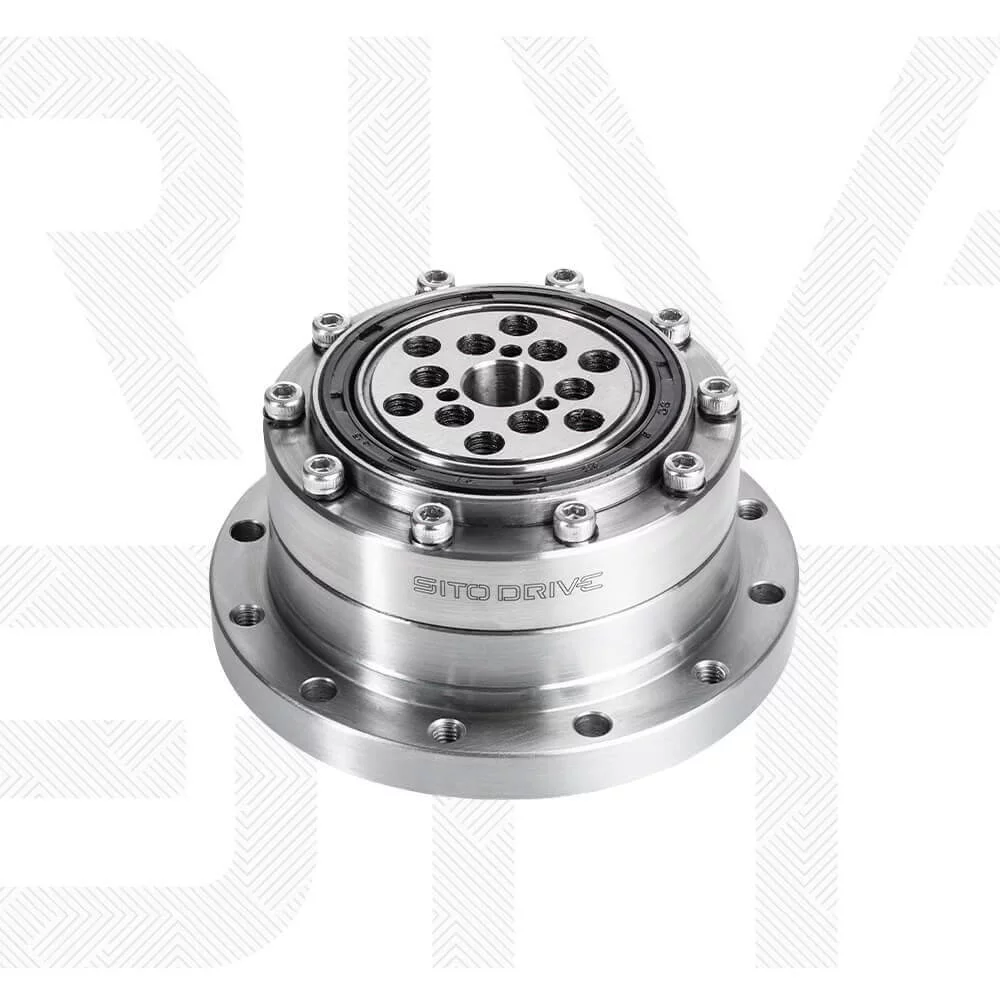

CS-17-I

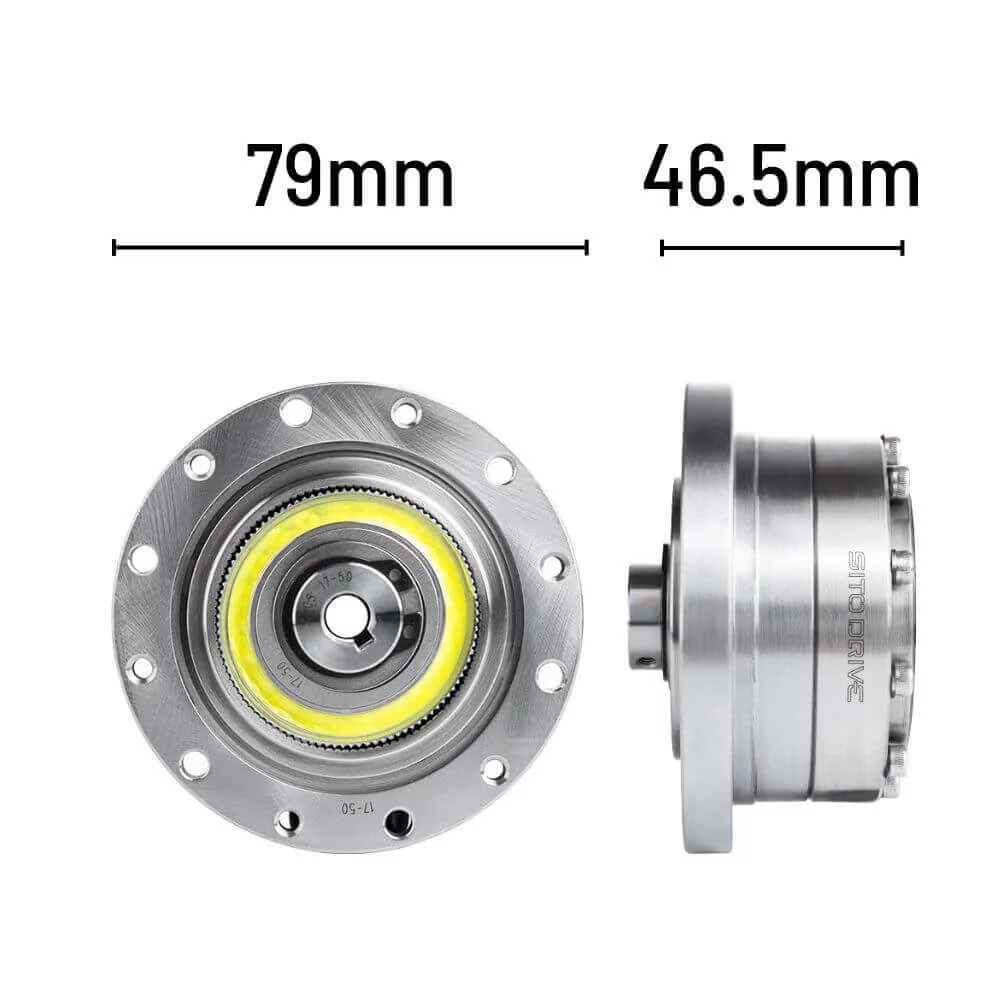

CS系列-调心型谐波减速器
直径 : 79 mm
厚度 : 47.44 mm
重量 : ≤0.713 kg

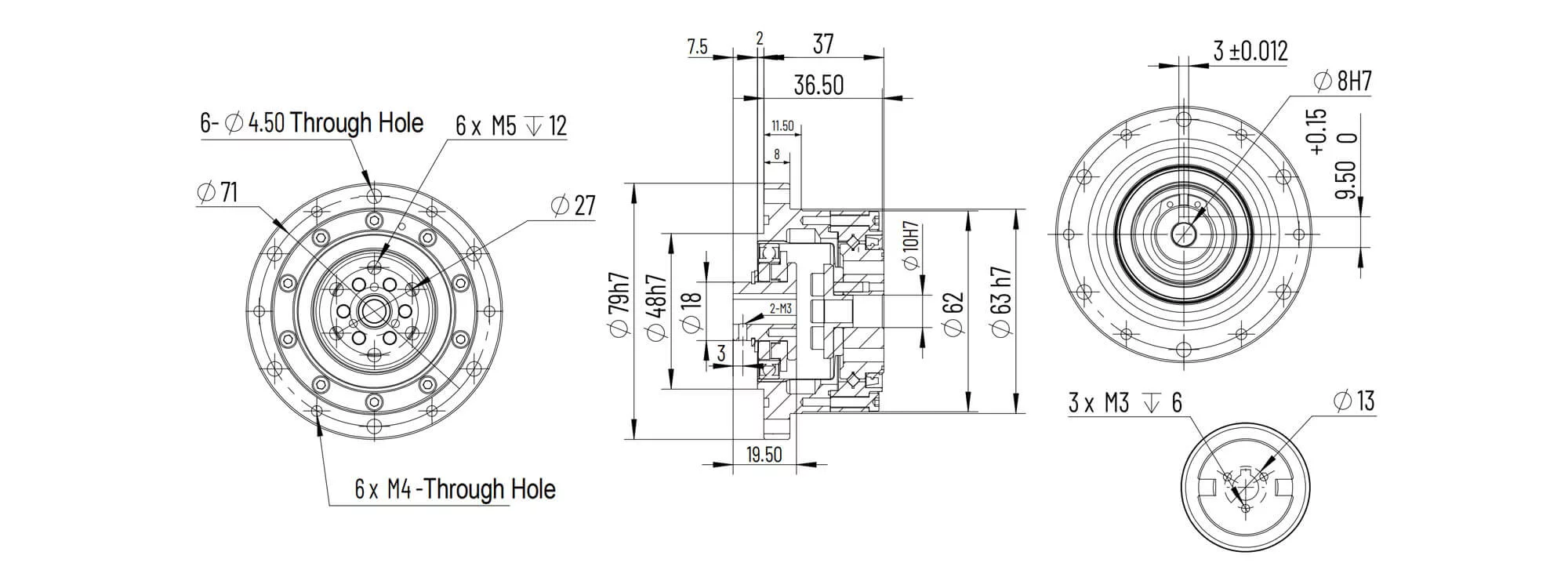

孔位安装平面图
单位 : mm
CS-17 参数
减速比
30
50
80
100
120
输入2000r/min时的额定转矩 [ Nm ]
8.8
16
22
24
起动停止时的容许峰值转矩 [ Nm ]
34
43
54
平均负载转矩的容许最大值 [ Nm ]
12
26
27
39
瞬间容许最大转矩 [ Nm ]
70
87
118
容许最高输入转速 [ rpm ]
7300
容许平均转速 [ rpm ]
3500
转动惯量 [ Ix10^-4 kgm^2 ]
0.079
背隙 [ Arcsec ]
≤20
≤10
