    Home SitoDrive CS-14-I Harmonic Drive CSF-14-I High Precision Strain Wave Gear Reducer for Automation Robot Medical Stepper Motor

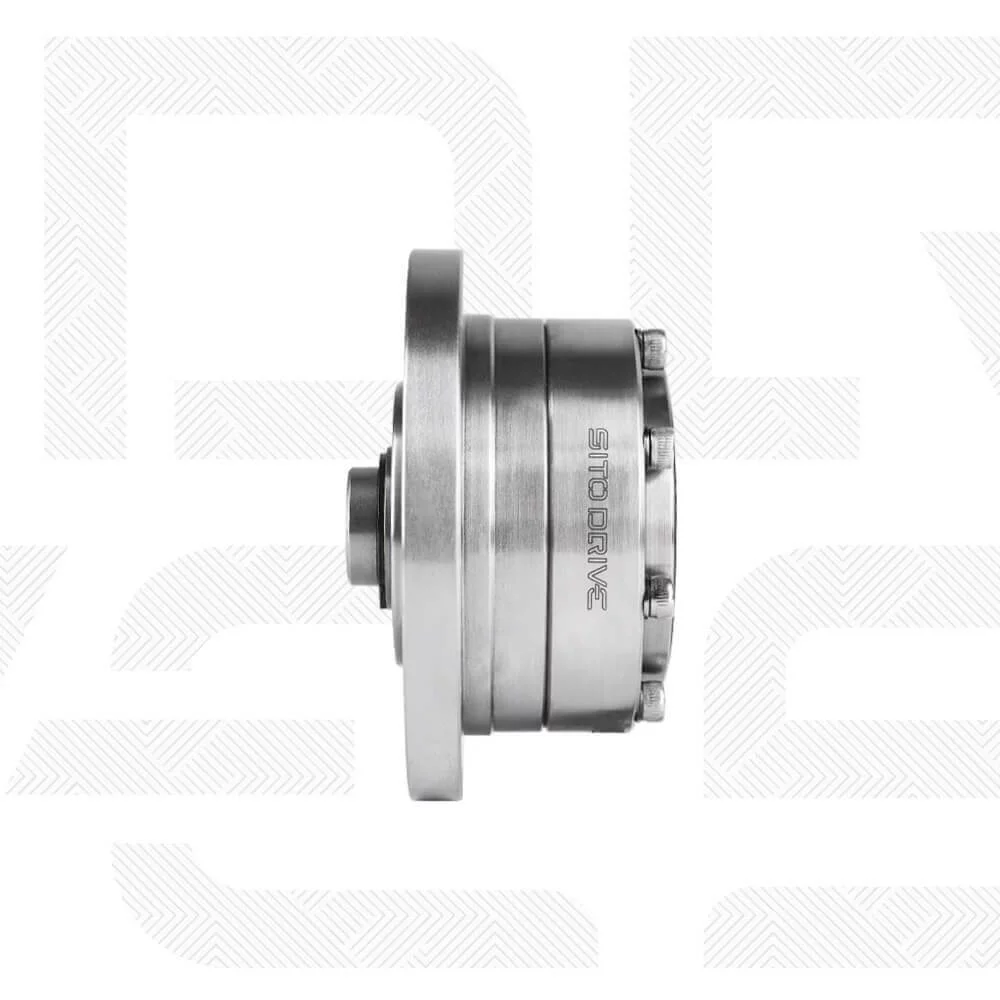

    SitoDrive CS-14-I Harmonic Drive CSF-14-I High Precision Strain Wave Gear Reducer for Automation Robot Medical Stepper Motor
    SitoDrive CS-14-I Harmonic Drive CSF-14-I High Precision Strain Wave Gear Reducer for Automation Robot Medical Stepper Motor
    SitoDrive CS-14-I Harmonic Drive CSF-14-I High Precision Strain Wave Gear Reducer for Automation Robot Medical Stepper Motor
    SitoDrive CS-14-I Harmonic Drive CSF-14-I High Precision Strain Wave Gear Reducer for Automation Robot Medical Stepper Motor
    SitoDrive CS-14-I Harmonic Drive CSF-14-I High Precision Strain Wave Gear Reducer for Automation Robot Medical Stepper Motor
    SitoDrive CS-14-I Harmonic Drive CSF-14-I High Precision Strain Wave Gear Reducer for Automation Robot Medical Stepper Motor
    SitoDrive CS-14-I Harmonic Drive CSF-14-I High Precision Strain Wave Gear Reducer for Automation Robot Medical Stepper Motor
    SitoDrive CS-14-I Harmonic Drive CSF-14-I High Precision Strain Wave Gear Reducer for Automation Robot Medical Stepper Motor

    SitoDrive CS-14-I Harmonic Drive CSF-14-I High Precision Strain Wave Gear Reducer for Automation Robot Medical Stepper Motor

    10% Cashback；Import charges included

    Amount:
    0 0
    • Speed Ratio
      30
      50
      80
      100
    1
    Add to Cart
    Buy Now

    CS-14-I

    CS系列谐波减速器

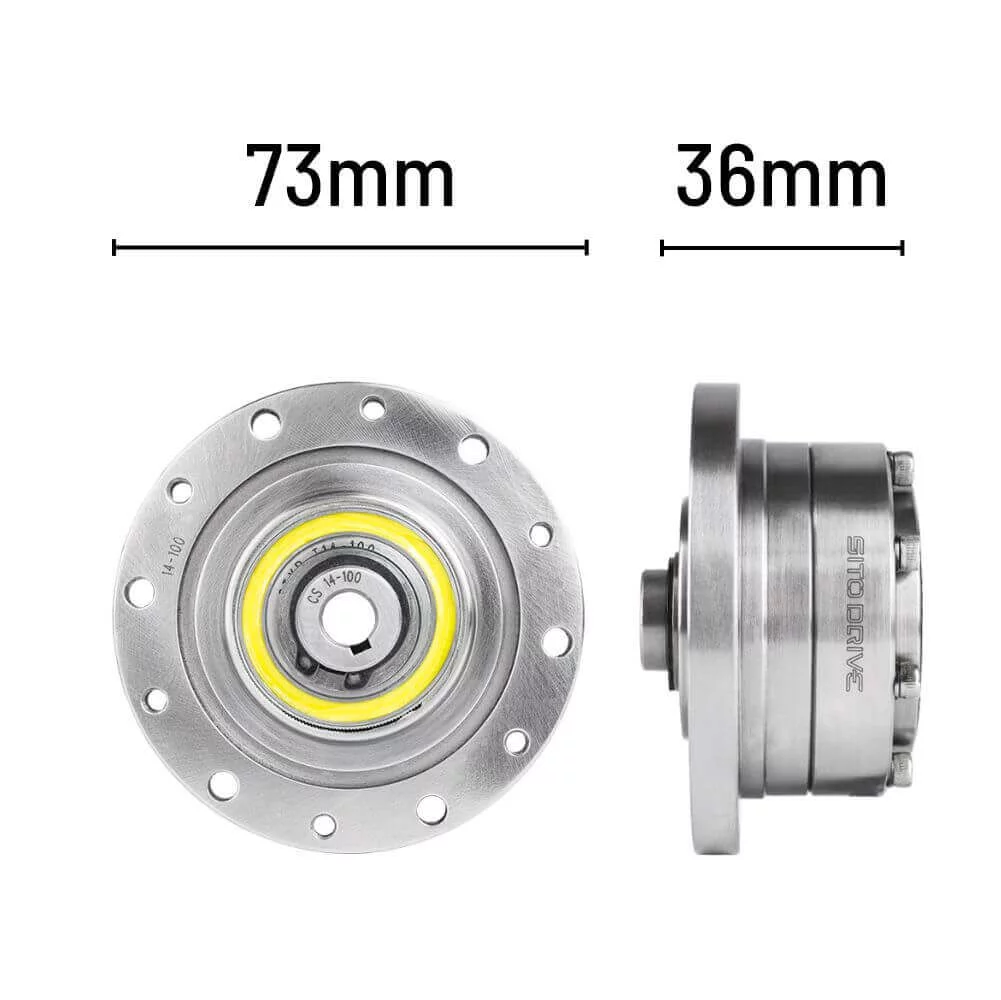

    直径 : 73 mm

    厚度 : 44.03 mm

    重量 : ≤ 0.531 kg

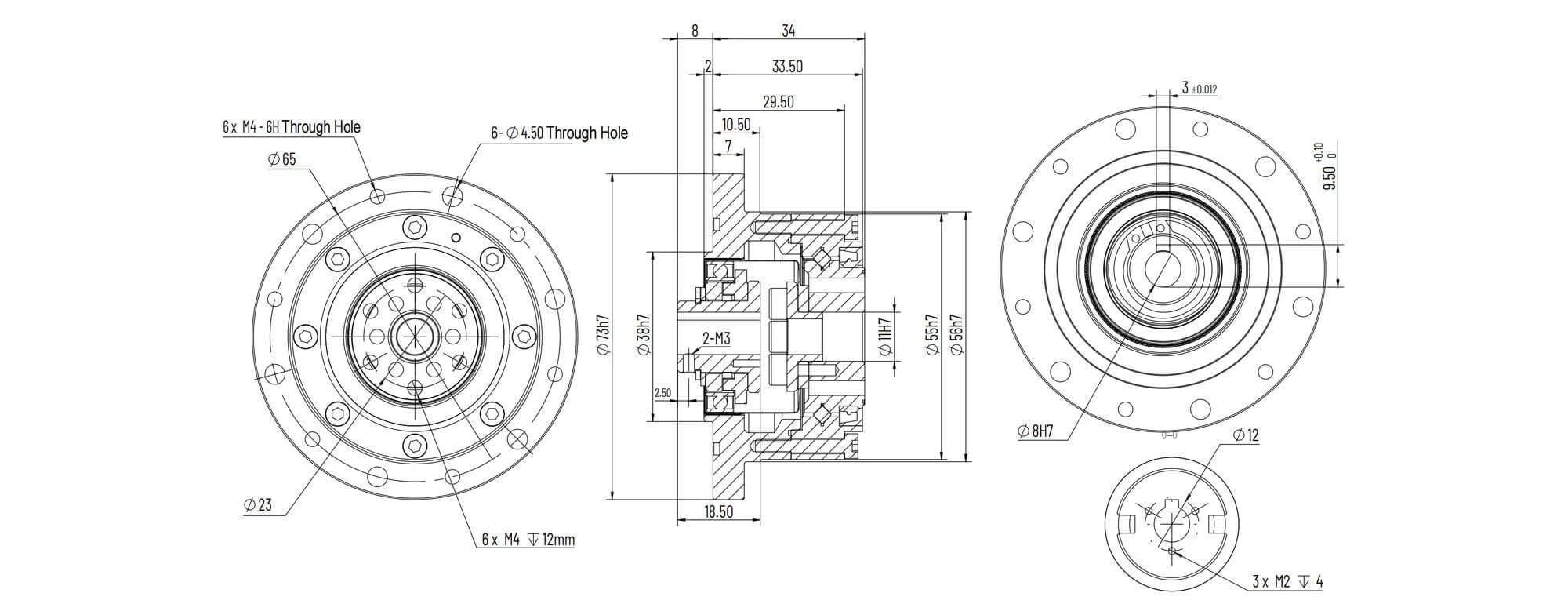

    孔位安装平面图

    单位 : mm

    CS-14 参数

    减速比

    30

    50

    80

    100

    120

    输入2000r/min时的额定转矩 [ Nm ]

    4

    5.4

    7.8

    7.8

    起动停止时的容许峰值转矩 [ Nm ]

    9

    18

    23

    28

    平均负载转矩的容许最大值 [ Nm ]

    6.8

    6.9

    11

    11

    瞬间容许最大转矩 [ Nm ]

    17

    35

    47

    54

    容许最高输入转速 [ rpm ]

    8500

    8500

    8500

    8500

    容许平均转速 [ rpm ]

    3500

    3500

    3500

    3500

    转动惯量 [ Ix10^-4 kgm^2 ]

    0.033

    0.033

    0.033

    0.033

    背隙 [ Arcsec ]

    ≤20

    ≤20

    ≤10

    ≤10
