Home SitoDrive CS-08-1U-U Small Micro Harmonic Drive Nema 11 Servo Motor Lightweight Harmonic Gearbox CSF-8-1U for Rotary Actuator

SitoDrive CS-08-1U-U Small Micro Harmonic Drive Nema 11 Servo Motor Lightweight Harmonic Gearbox CSF-8-1U for Rotary Actuator

10% Cashback；Import charges included

Amount:

0 0

Speed Ratio

30

50

100

Add to Cart

Buy Now

CS Mini-08

CS系列微小型谐波减速器

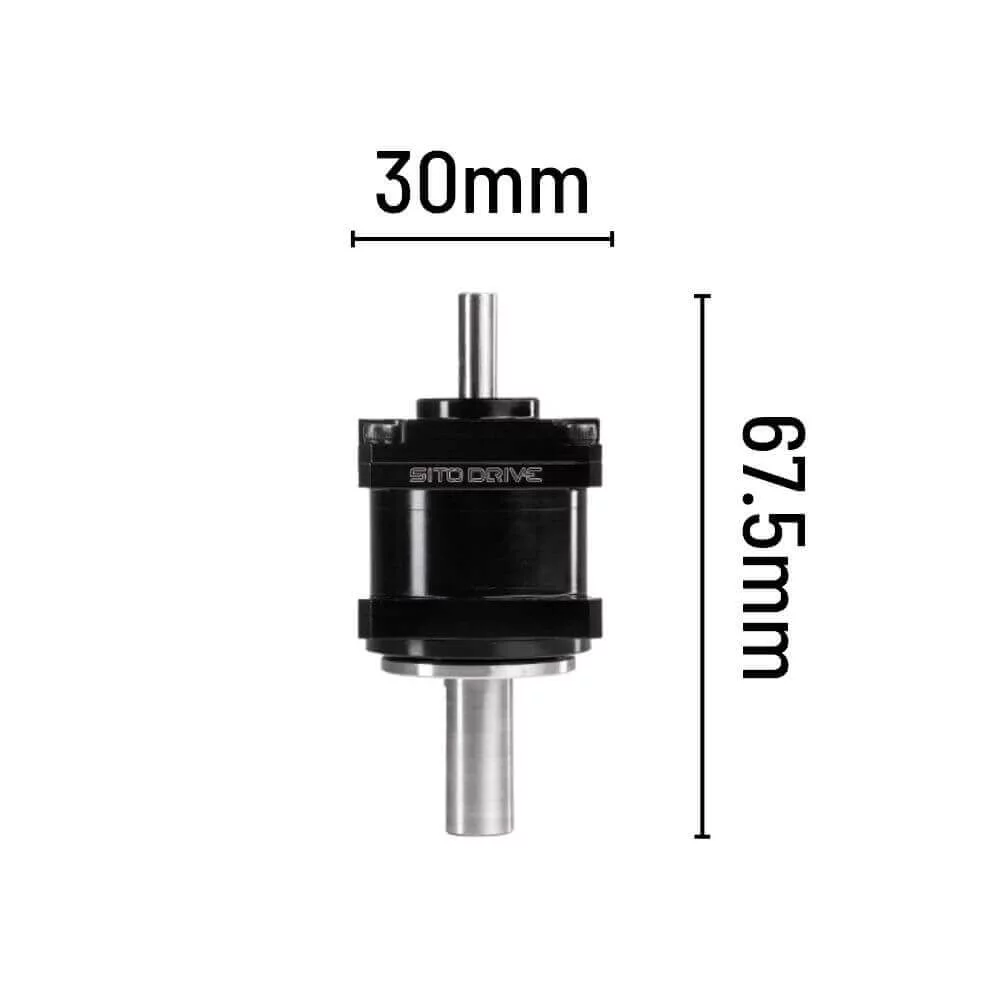

直径 : ≤ 50 mm

厚度 : ≤ 67.5 mm

重量 : ≤ 0.106 kg

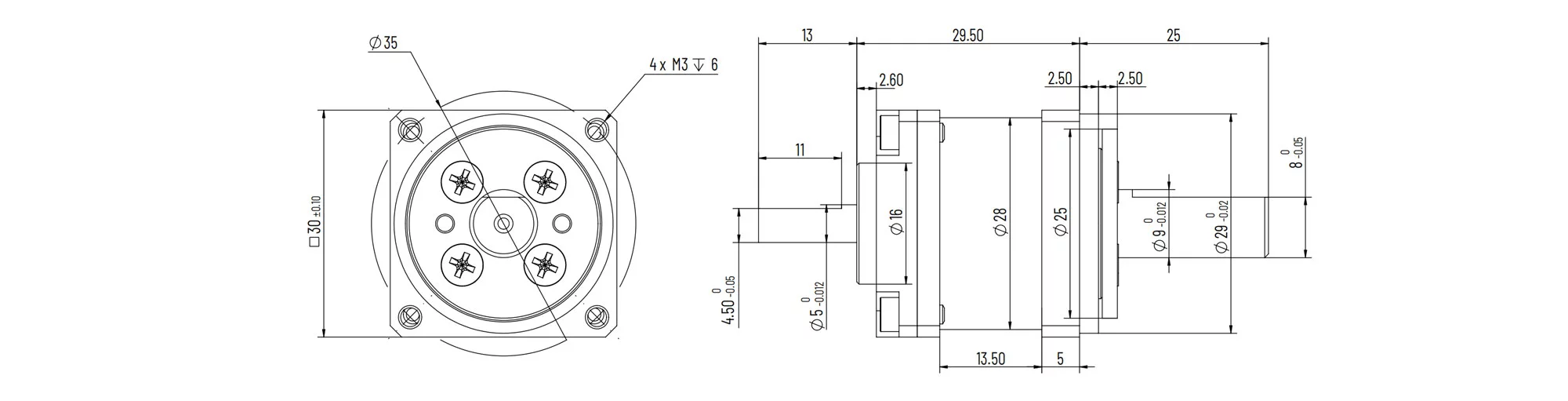

孔位安装平面图

单位 : mm

CS mini-08 参数

减速比

100

120

输入2000r/min时的额定转矩 [ Nm ]

0.9

1.8

2.4

起动停止时的容许峰值转矩 [ Nm ]

1.8

3.3

4.8

平均负载转矩的容许最大值 [ Nm ]

1.4

2.3

3.3

瞬间容许最大转矩 [ Nm ]

3.3

6.6

容许最高输入转速 [ rpm ]

8500

容许平均转速 [ rpm ]

3500

转动惯量 [ Ix10^-4 kgm^2 ]

3.2x10^-3

背隙 [ Arcsec ]

≤20
