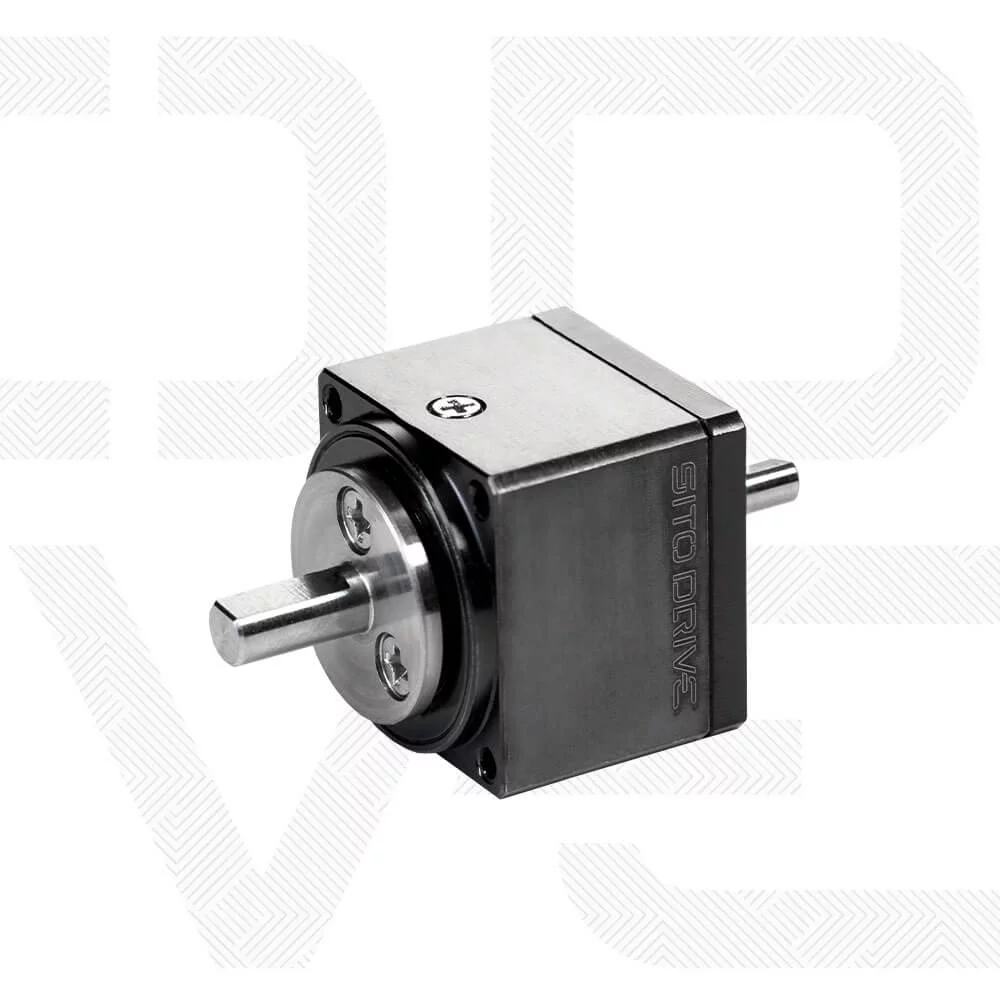

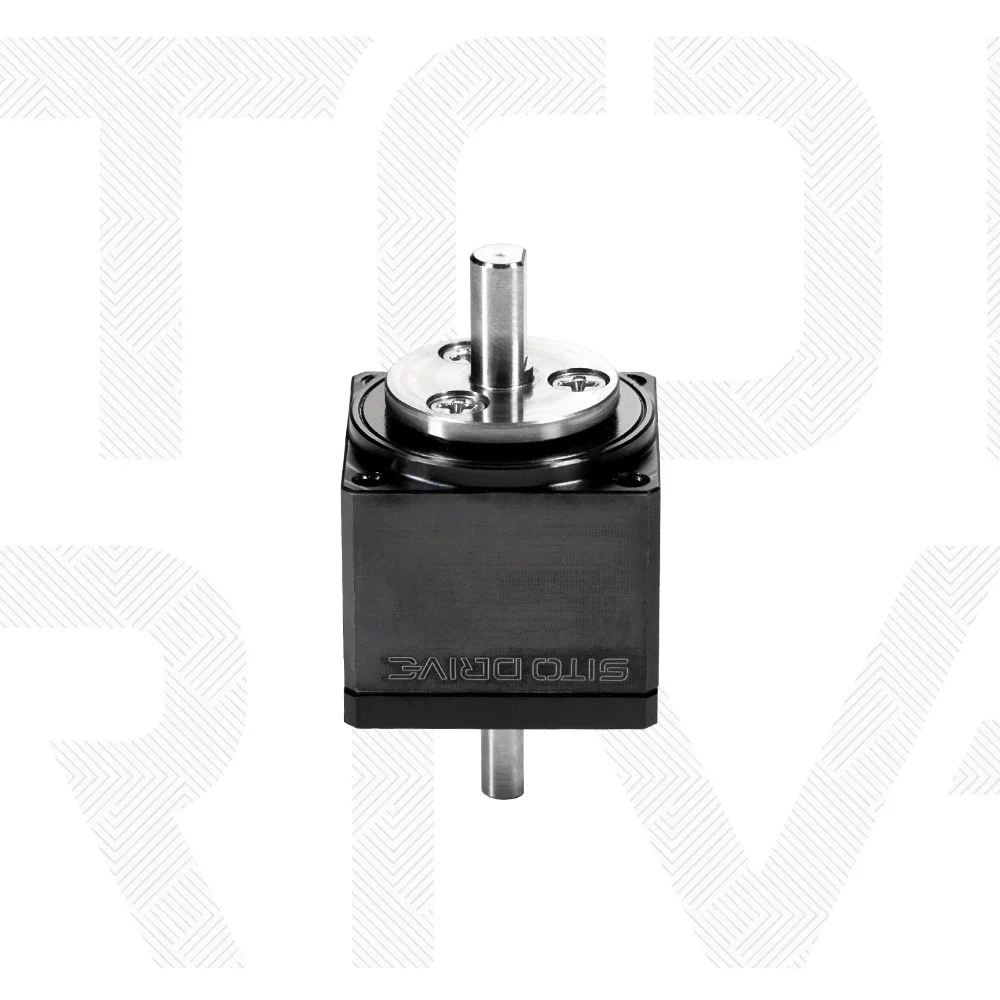

SitoDrive CS-05-1U-U Mini Micro Harmonic Drive Nema 8 Servo Motor for Compact Semiconductor Pick-and-Place Hands CSF-53-1U

10% Cashback；Import charges included

Amount:

0 0

Speed Ratio

30

50

80

Add to Cart

Buy Now

CS Mini-05

CS系列微小型谐波减速器

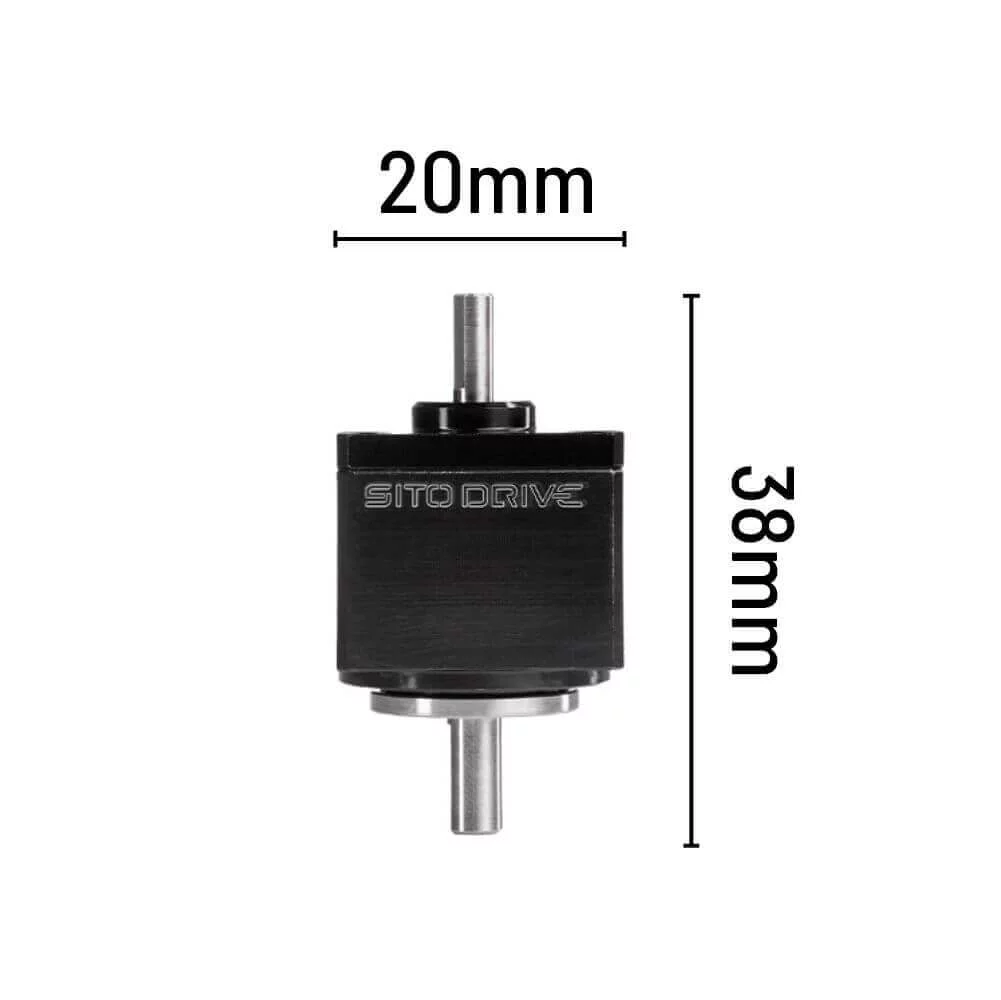

直径 : ≤ 22 mm

厚度 : ≤ 38 mm

重量 : ≤ 0.042 kg

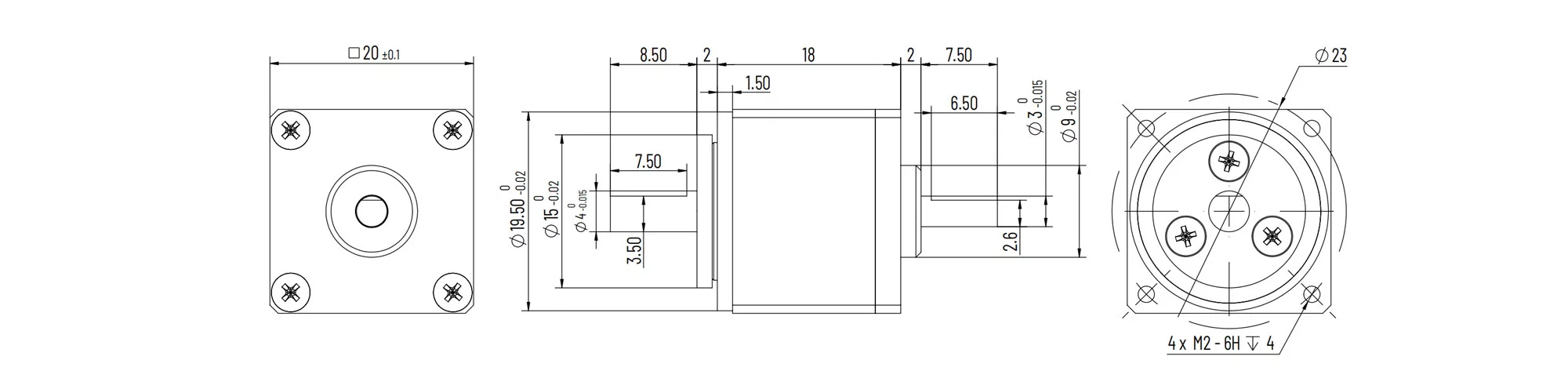

孔位安装平面图

单位 : mm

CS mini-05 参数

减速比

100

120

输入2000r/min时的额定转矩 [ Nm ]

0.25

0.4

0.52

起动停止时的容许峰值转矩 [ Nm ]

0.5

0.9

1.35

平均负载转矩的容许最大值 [ Nm ]

0.38

0.53

0.84

瞬间容许最大转矩 [ Nm ]

0.9

1.8

2.5

容许最高输入转速 [ rpm ]

10000

容许平均转速 [ rpm ]

6500

转动惯量 [ Ix10^-4 kgm^2 ]

2.5x10^-4

背隙 [ Arcsec ]

≤20
