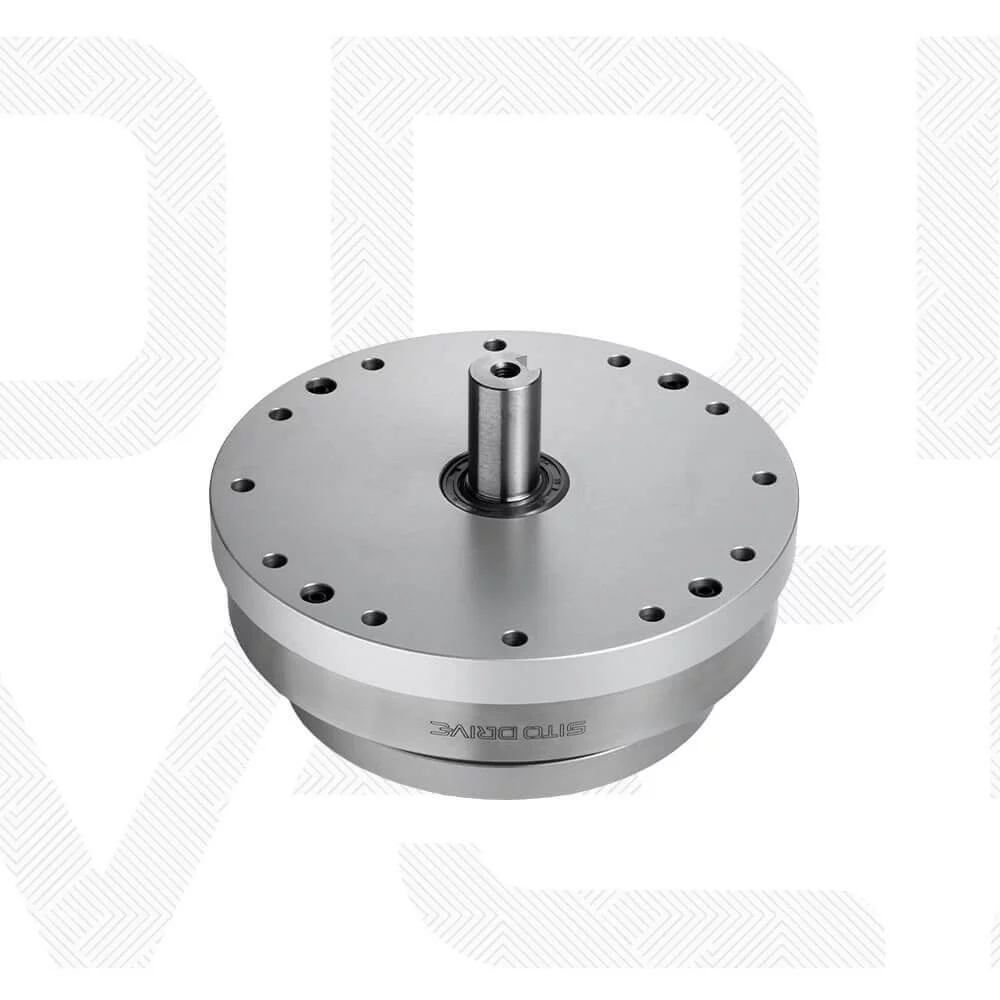

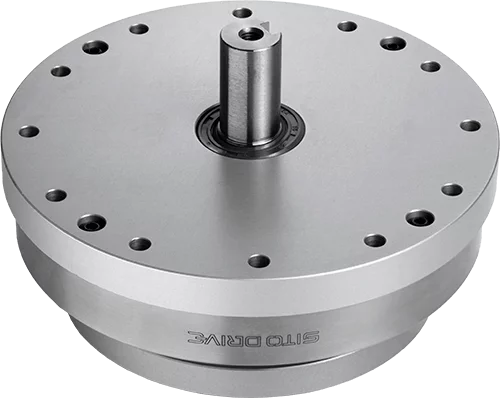

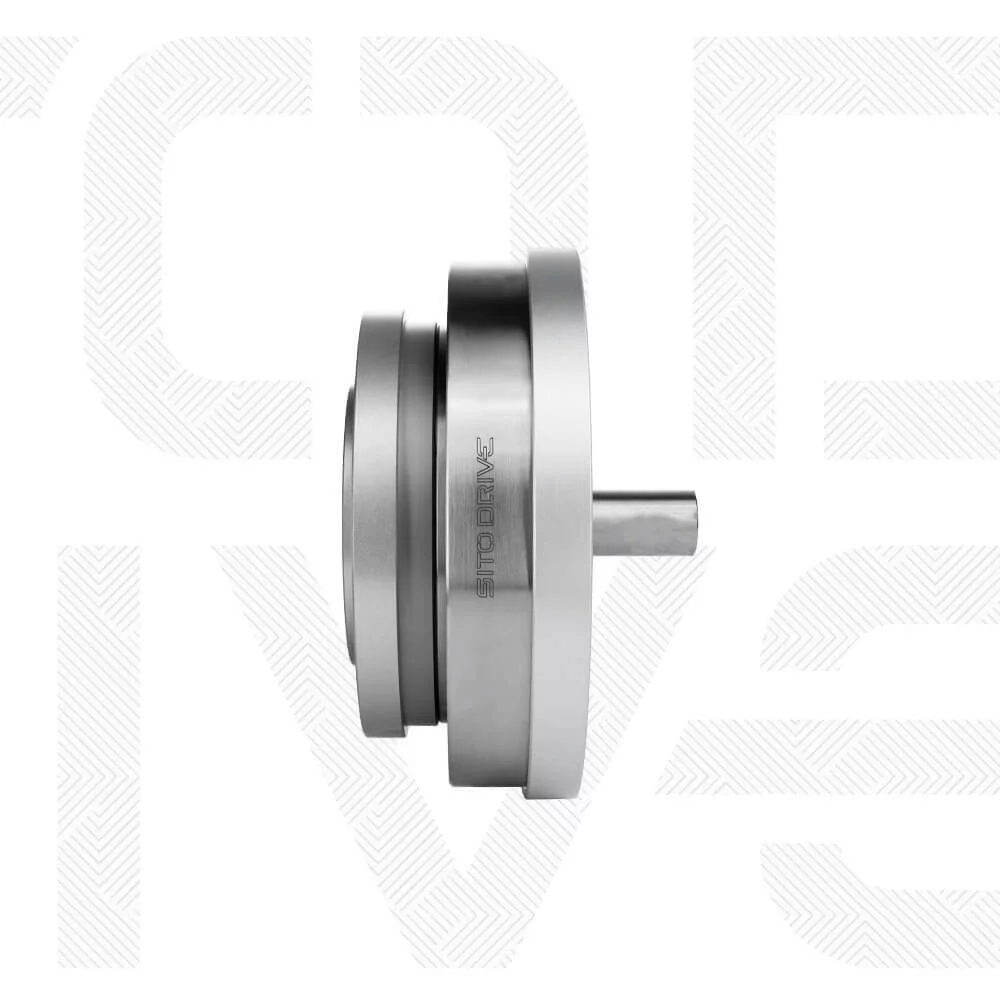

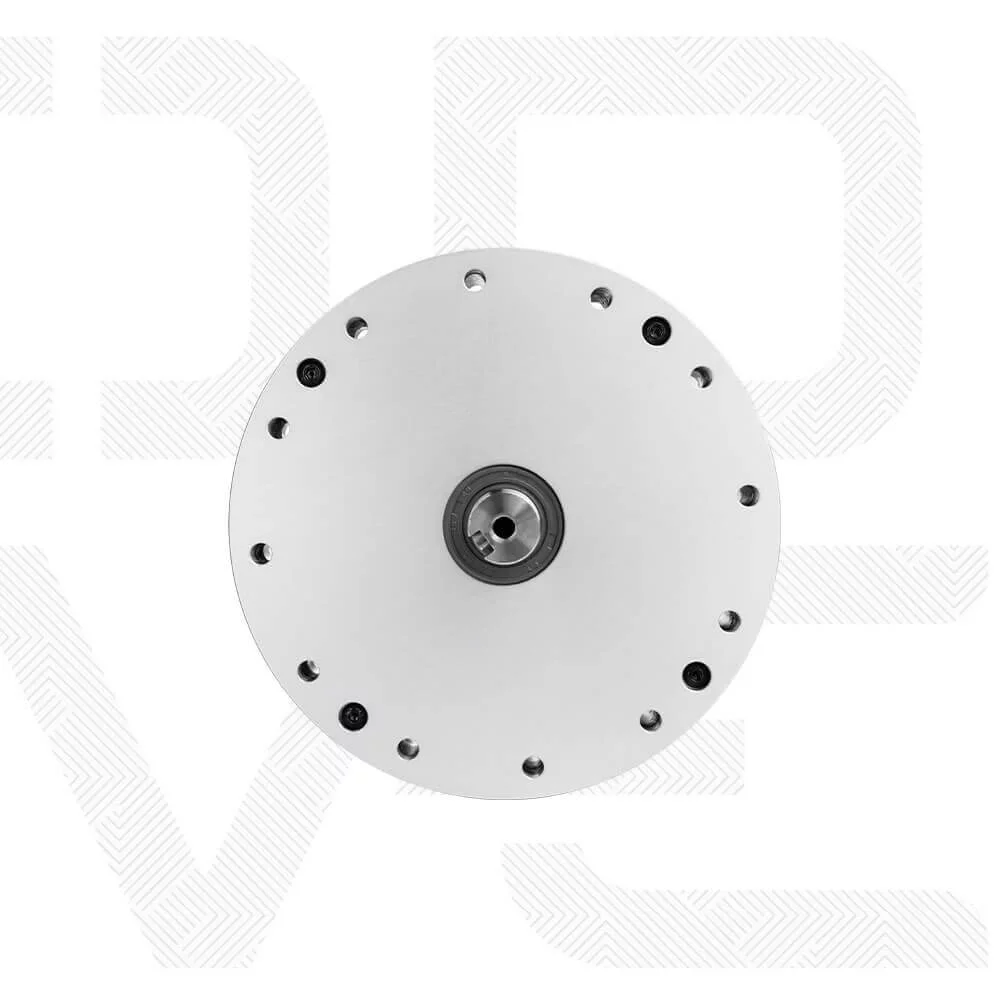

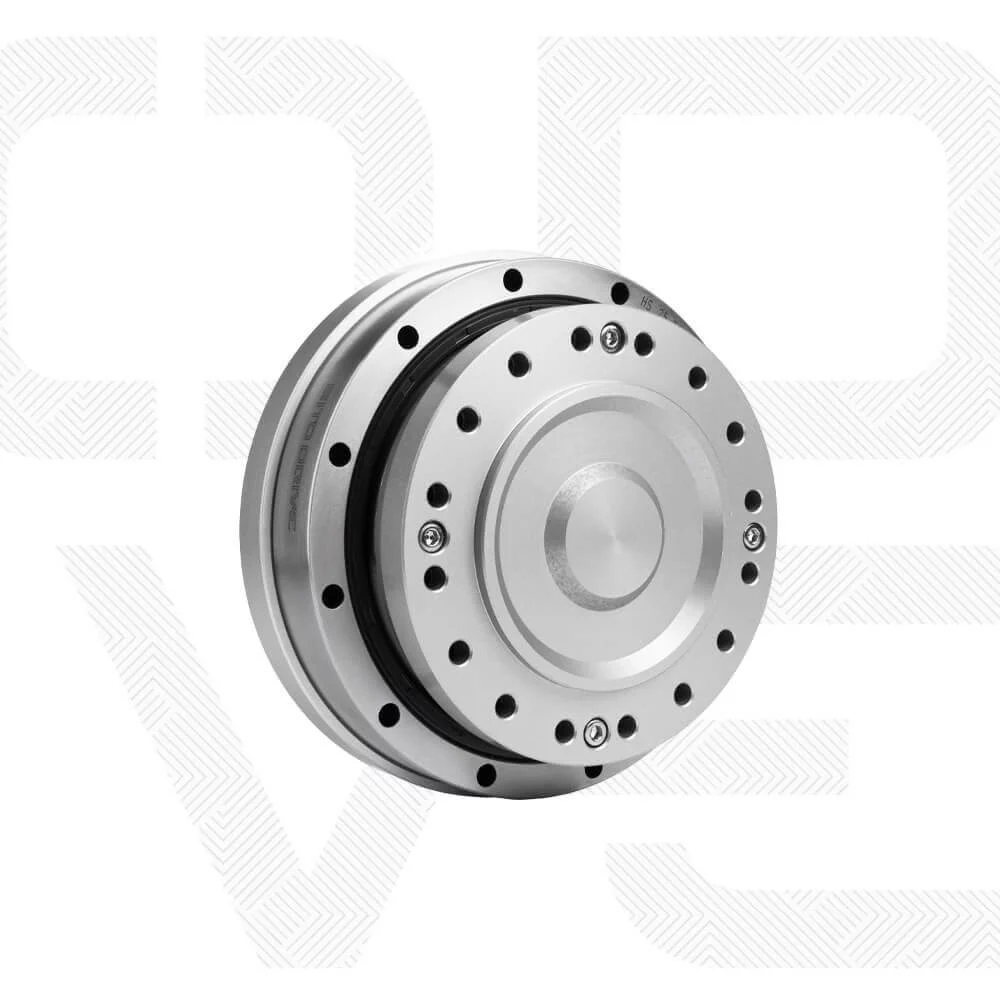

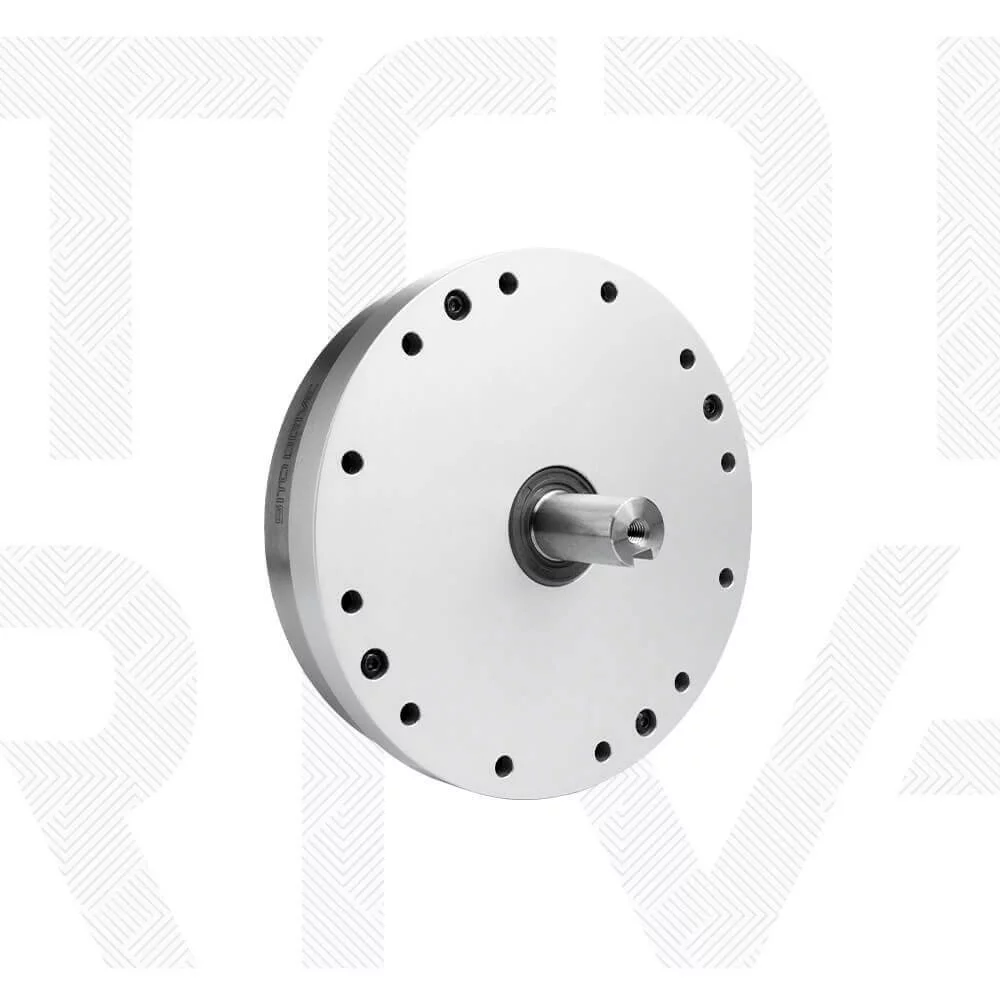

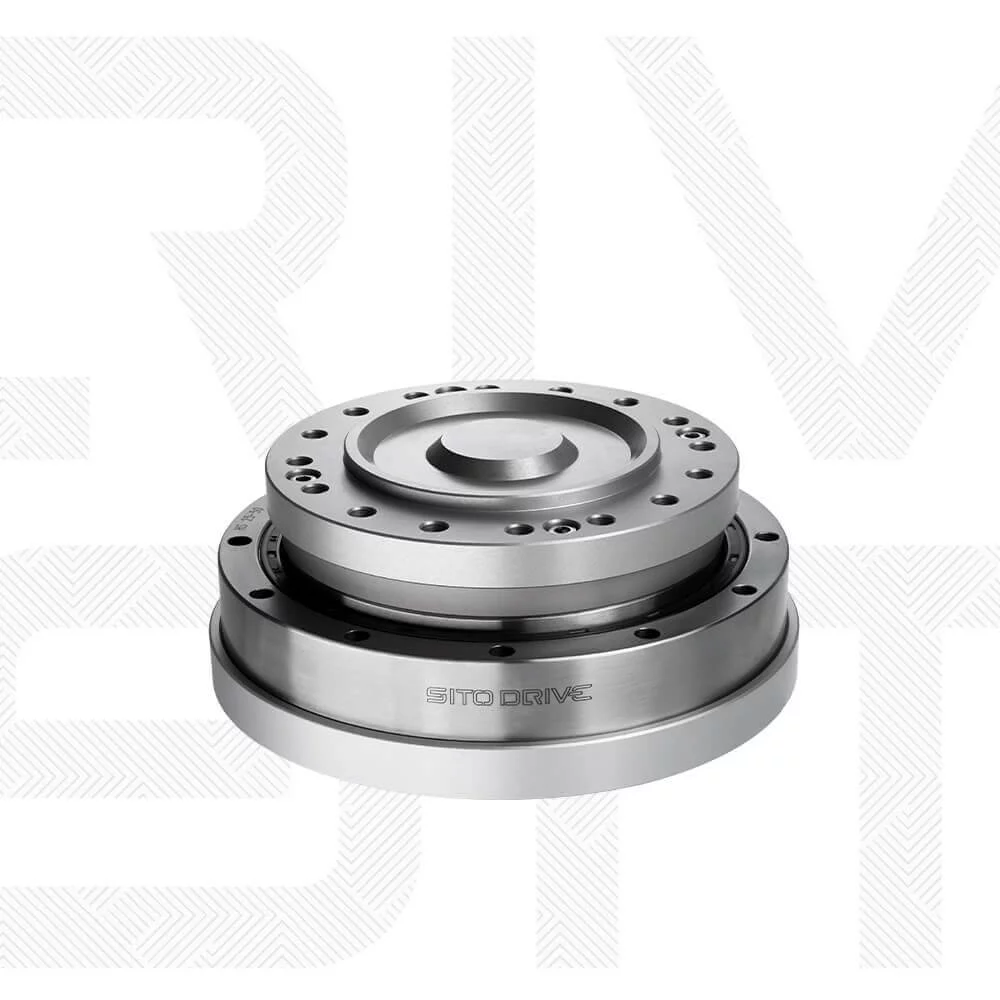

SitoDrive HS-25-IV Harmonic Drive SHF-25-IV High Precision Strain Wave Gear Reducer for Automation Robot Medical Stepper Motor

10% Cashback；Import charges included

Amount:

0 0

Speed Ratio

30

50

80

100

120

Add to Cart

Buy Now

HS-25-IV

HS系列-轴输入型谐波减速器

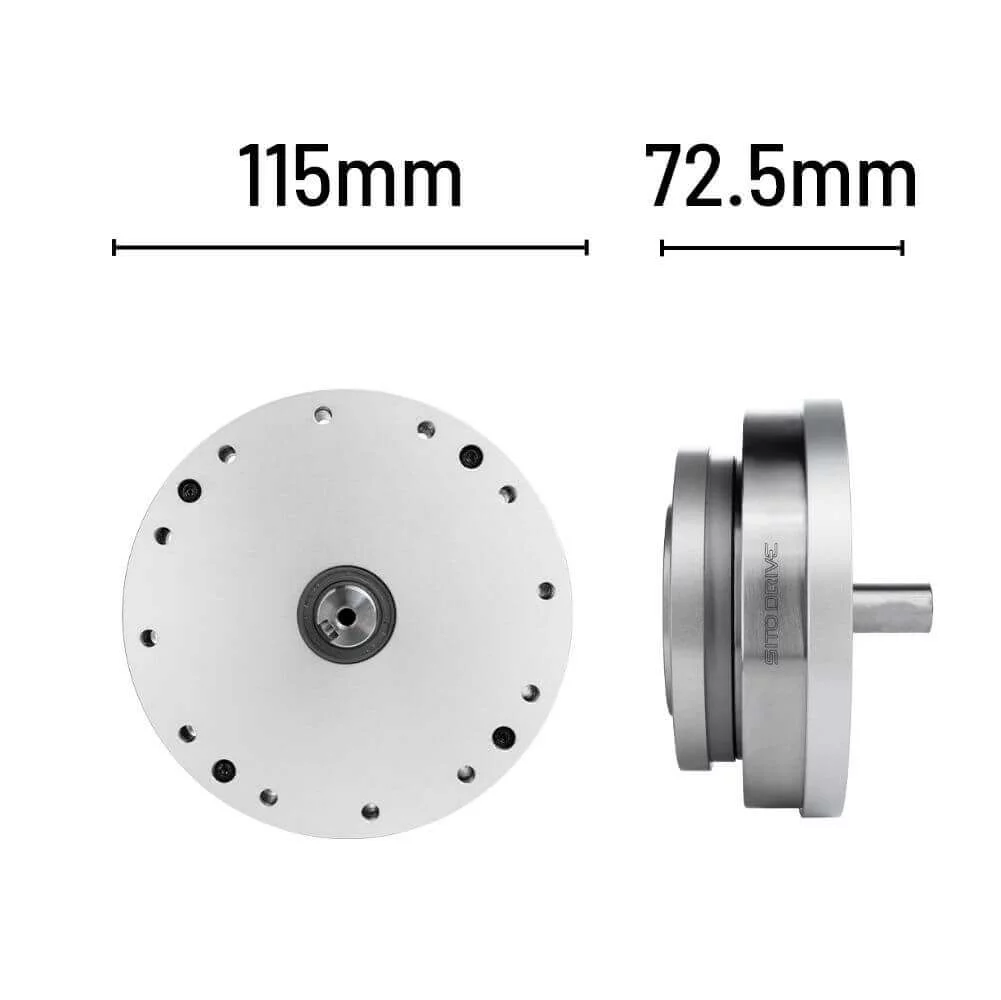

直径 : 115 mm

厚度 : 72.5 mm

重量 : ≤1.556 kg

孔位安装平面图

单位 : mm

HD-25 参数

减速比

100

120

输入2000r/min时的额定转矩 [ Nm ]

起动停止时的容许峰值转矩 [ Nm ]

137

157

167

平均负载转矩的容许最大值 [ Nm ]

108

瞬间容许最大转矩 [ Nm ]

186

255

284

304

容许最高输入转速 [ rpm ]

5600

容许平均转速 [ rpm ]

3500

转动惯量 [ Ix10^-4 kgm^2 ]

0.413

背隙 [ Arcsec ]

≤20

≤10
