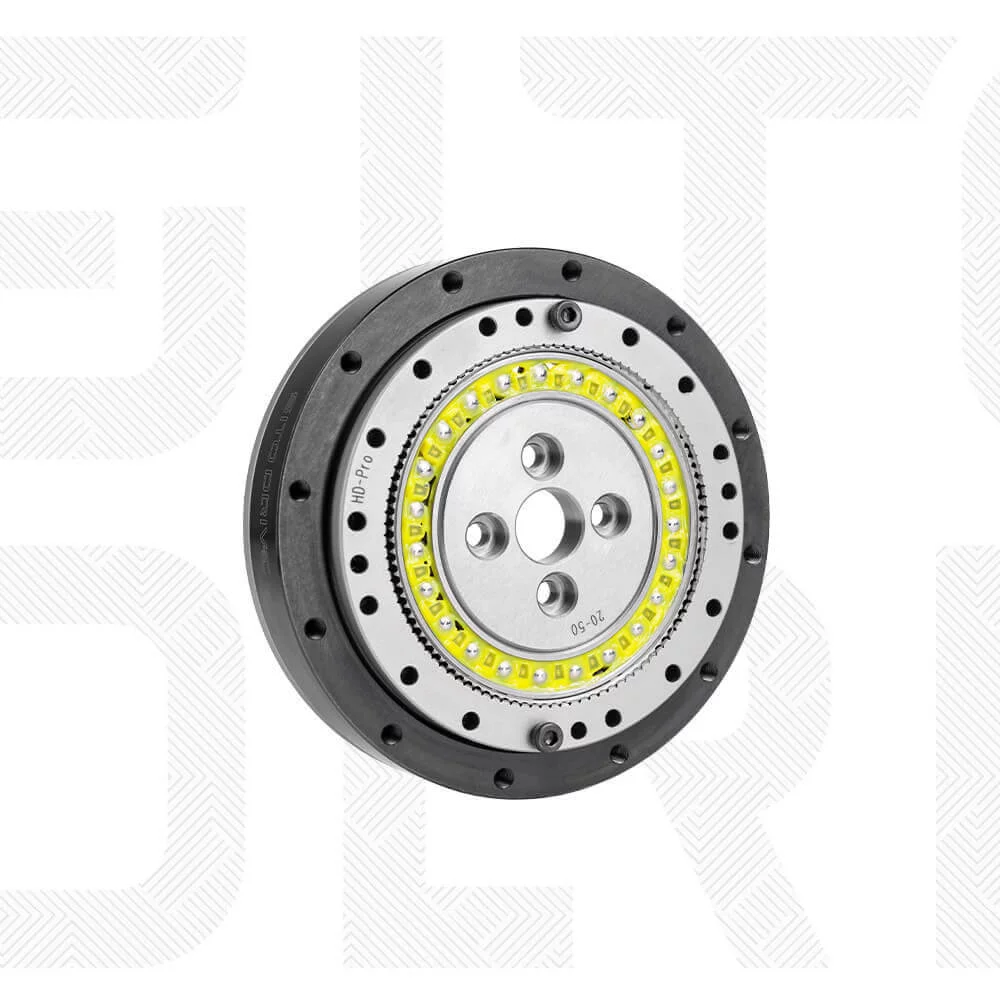

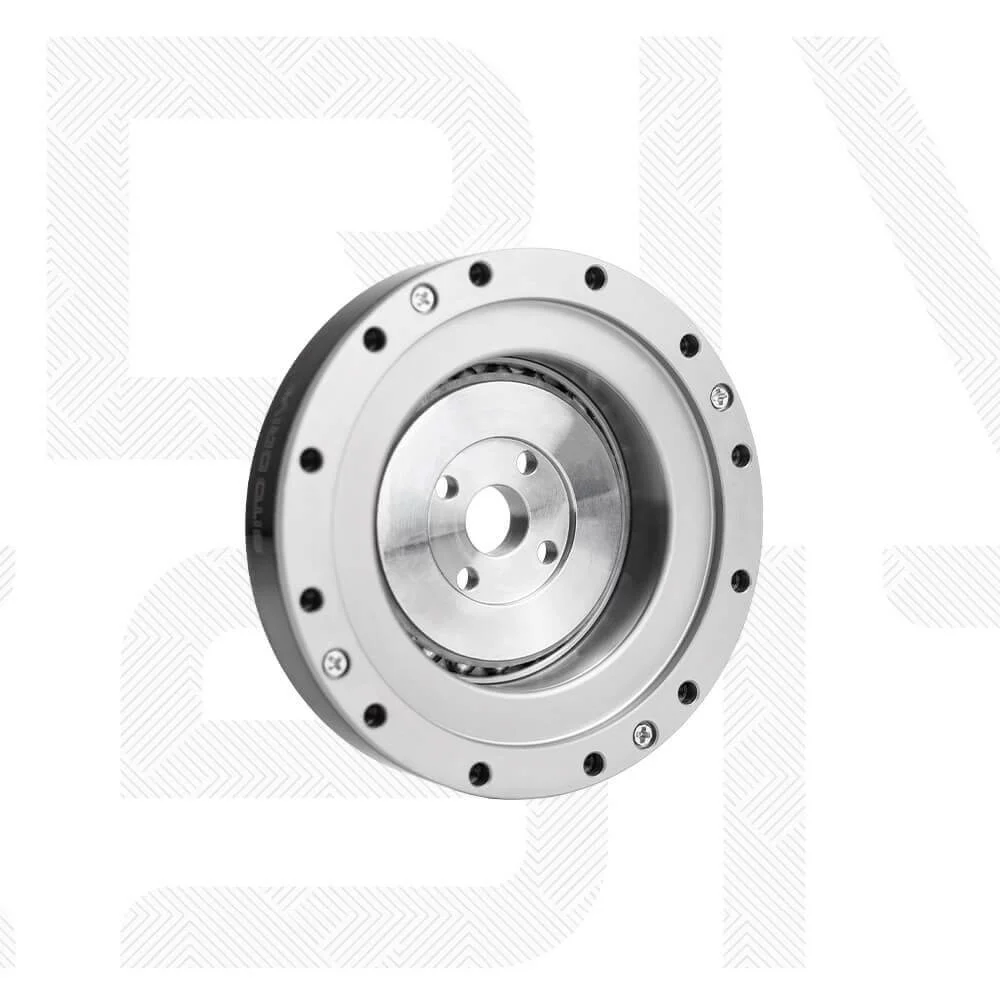

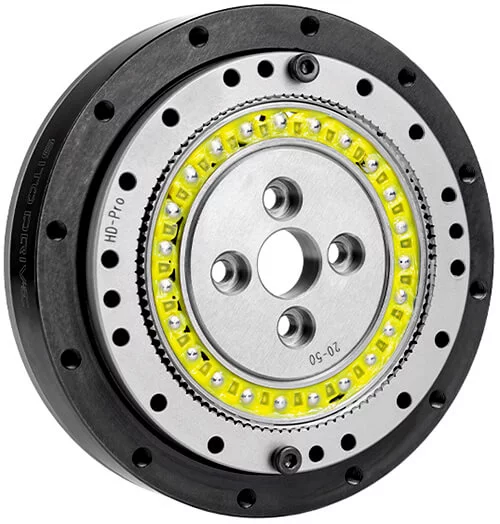

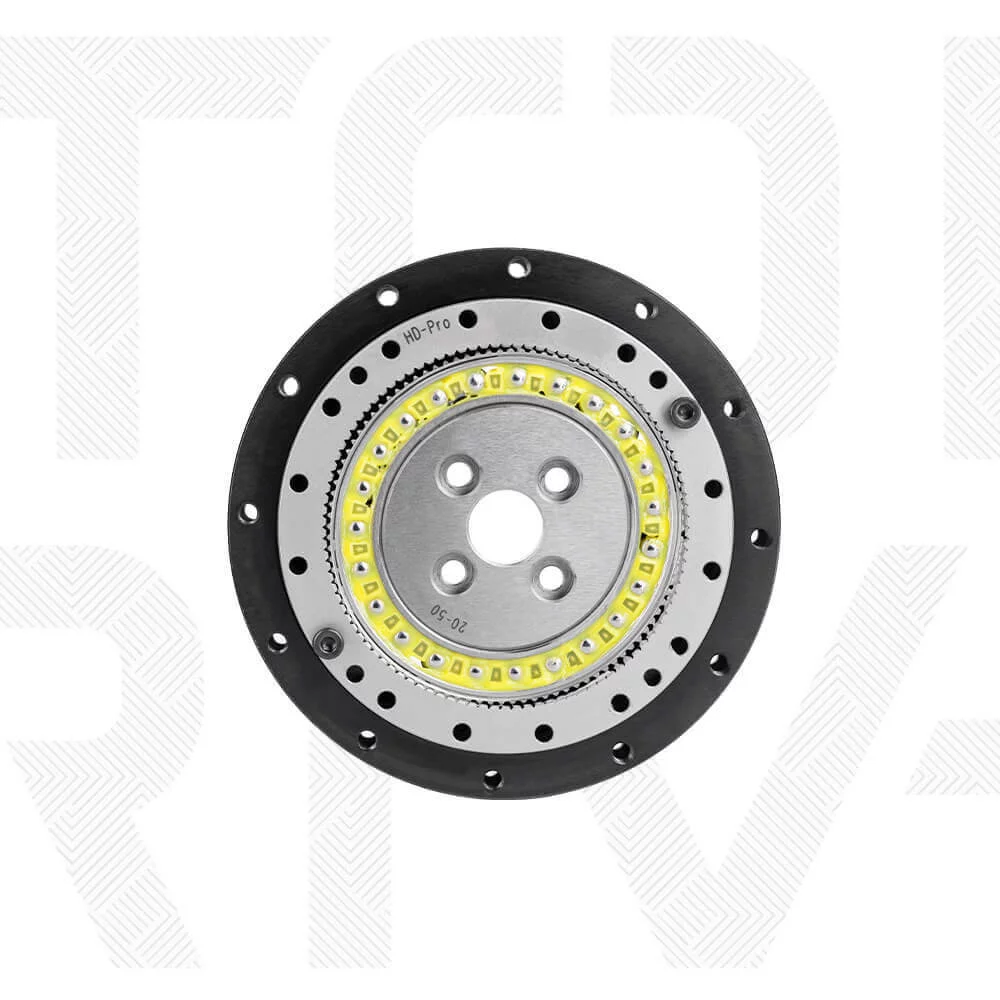

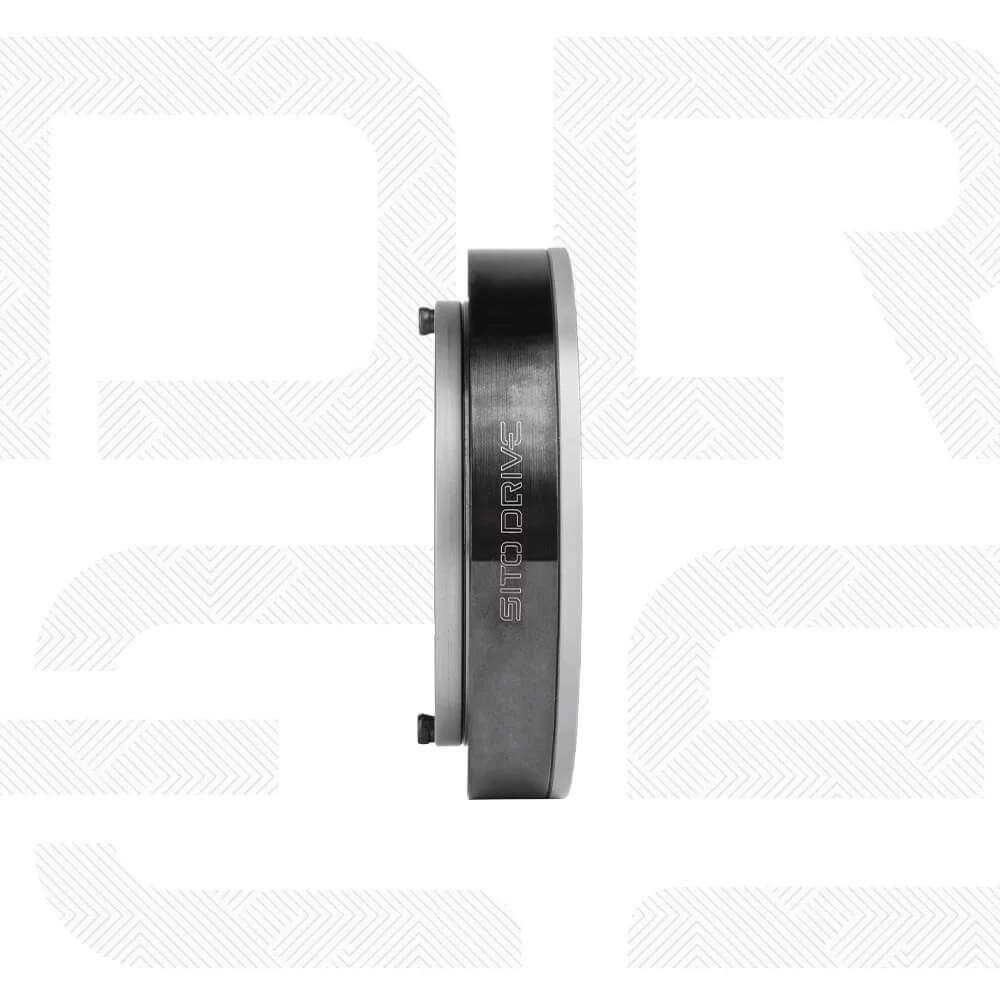

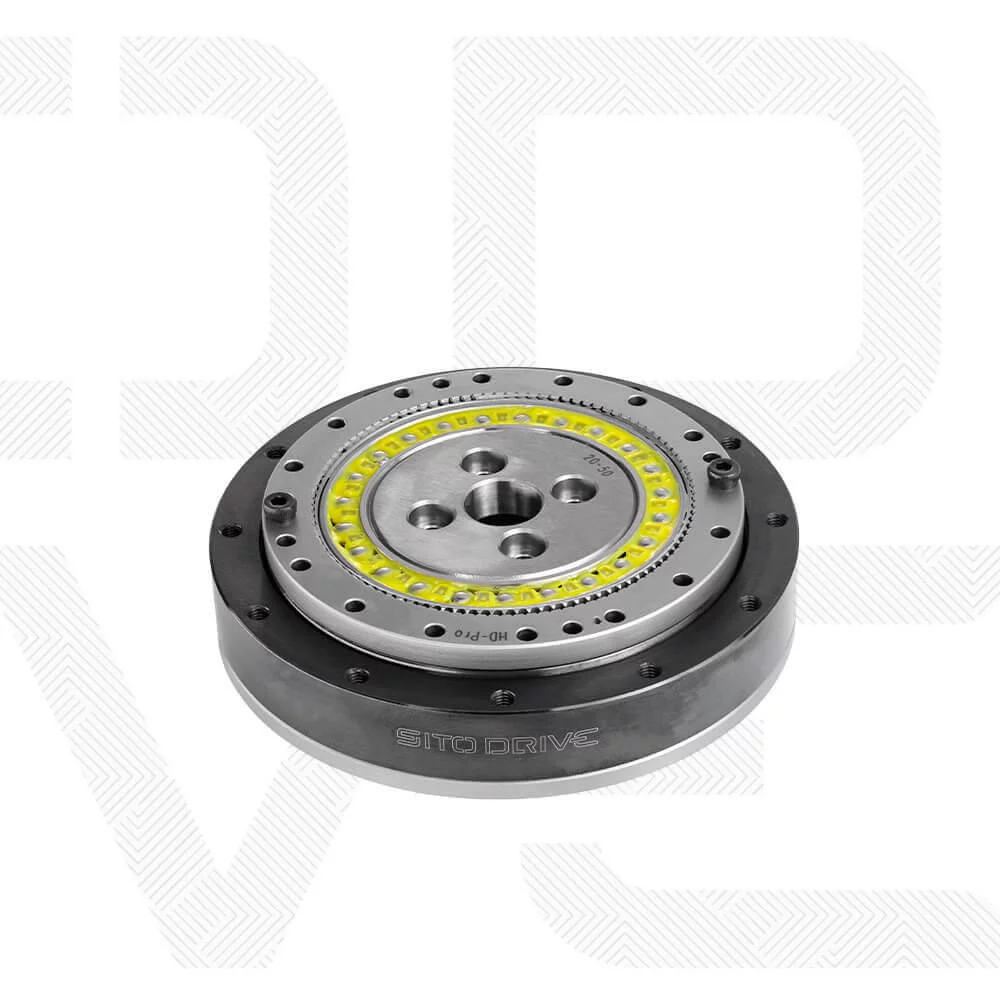

    SitoDrive HD-17 Pro High Torque Harmonic Reducer Nema 34 Servo Motor 80mm Flange for Automated Conveyor & Sorting Systems SHD-20
    SitoDrive HD-17 Pro High Torque Harmonic Reducer Nema 34 Servo Motor 80mm Flange for Automated Conveyor & Sorting Systems SHD-20
    SitoDrive HD-17 Pro High Torque Harmonic Reducer Nema 34 Servo Motor 80mm Flange for Automated Conveyor & Sorting Systems SHD-20
    SitoDrive HD-17 Pro High Torque Harmonic Reducer Nema 34 Servo Motor 80mm Flange for Automated Conveyor & Sorting Systems SHD-20
    SitoDrive HD-17 Pro High Torque Harmonic Reducer Nema 34 Servo Motor 80mm Flange for Automated Conveyor & Sorting Systems SHD-20
    SitoDrive HD-17 Pro High Torque Harmonic Reducer Nema 34 Servo Motor 80mm Flange for Automated Conveyor & Sorting Systems SHD-20

    SitoDrive HD-17 Pro High Torque Harmonic Reducer Nema 34 Servo Motor 80mm Flange for Automated Conveyor & Sorting Systems SHD-20

    10% Cashback；Import charges included

    Amount:
    0 0
    • Speed Ratio
      50
      100
    1
    Add to Cart
    Buy Now

    HD-17 Pro

    HD系列谐波减速器

    直径 : 80 mm

    厚度 : 18.5 mm

    重量 : 0.383 kg

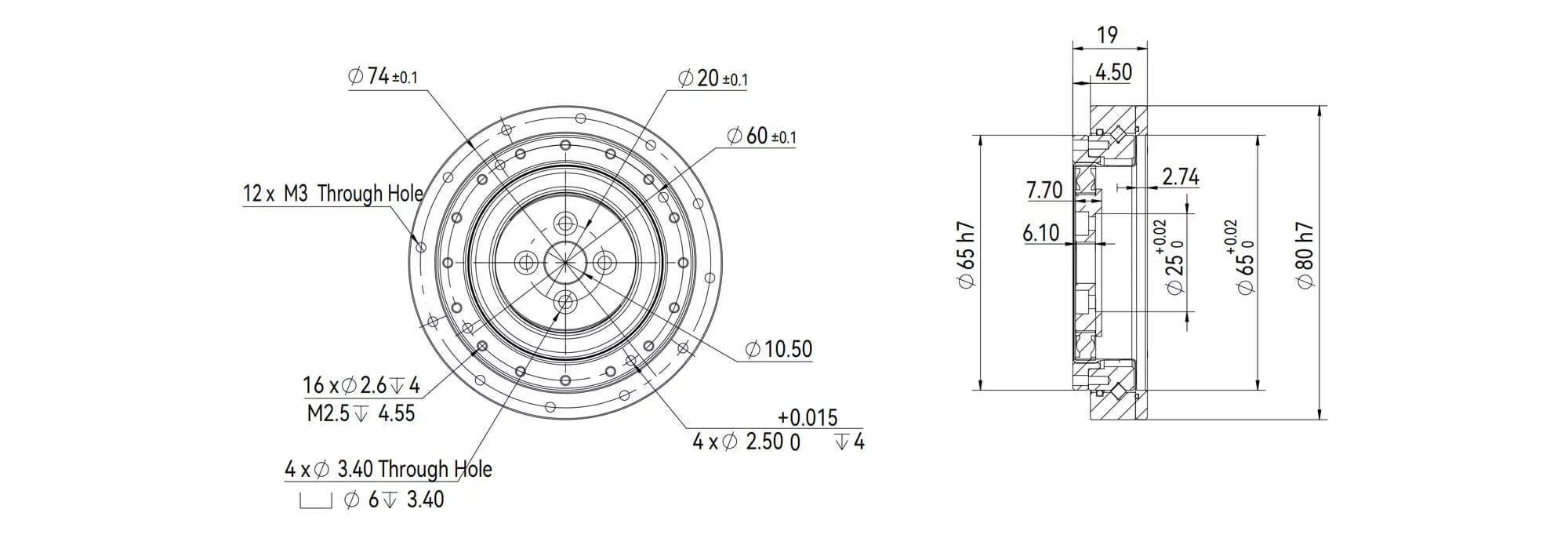

    孔位安装平面图

    单位 : mm

    HD-17 Pro 参数

    减速比

    30

    50

    80

    100

    120

    输入2000r/min时的额定转矩 [ Nm ]

    17

    28

    起动停止时的容许峰值转矩 [ Nm ]

    39

    57

    平均负载转矩的容许最大值 [ Nm ]

    24

    32

    瞬间容许最大转矩 [ Nm ]

    69

    95

    容许最高输入转速 [ rpm ]

    7000

    7000

    容许平均转速 [ rpm ]

    3500

    3500

    转动惯量 [ Ix10^-4 kgm^2 ]

    0.09

    0.09

    背隙 [ Arcsec ]

    ≤20

    ≤10
