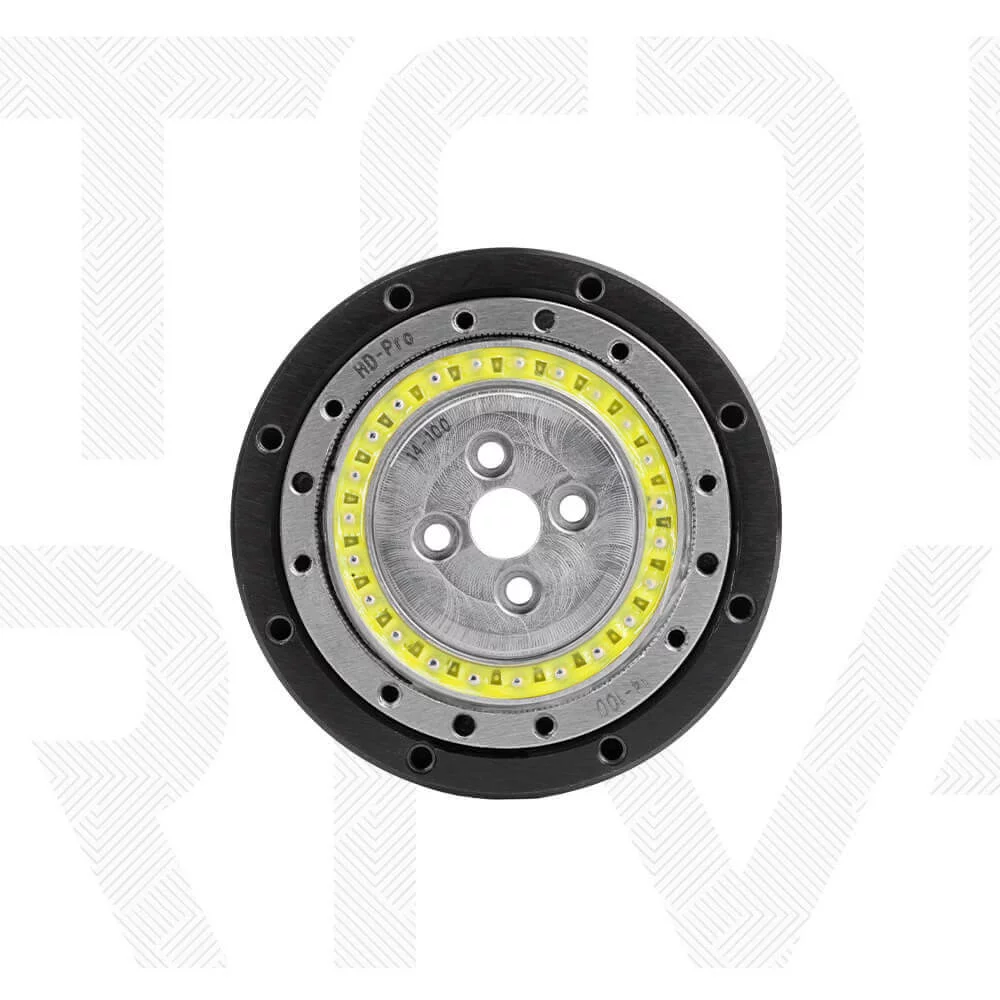

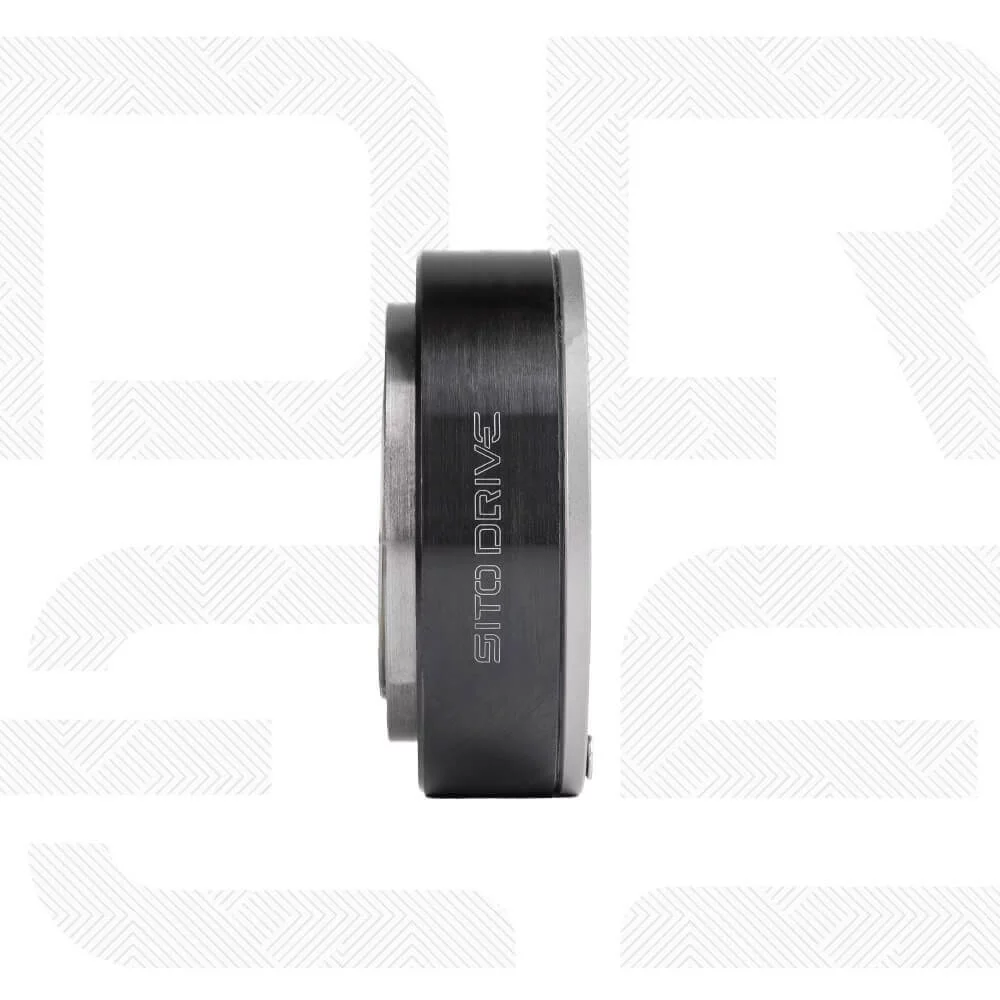

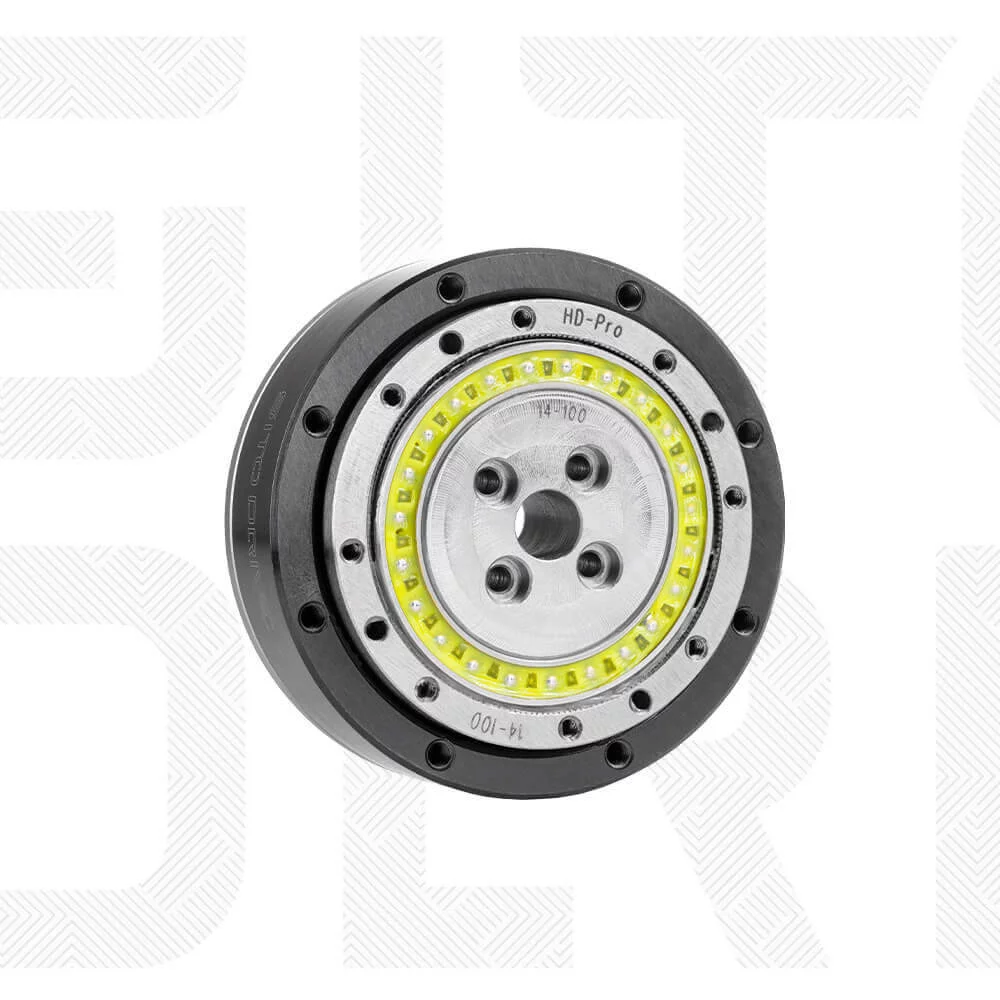

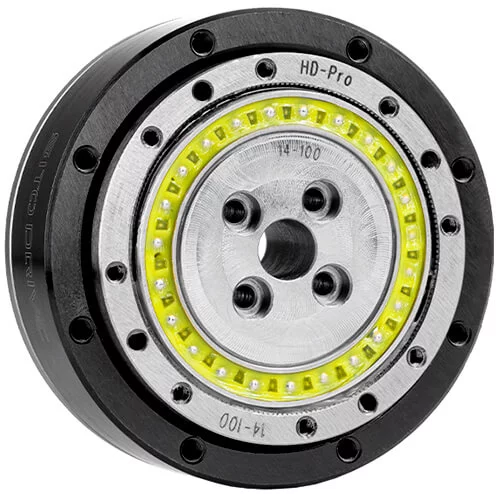

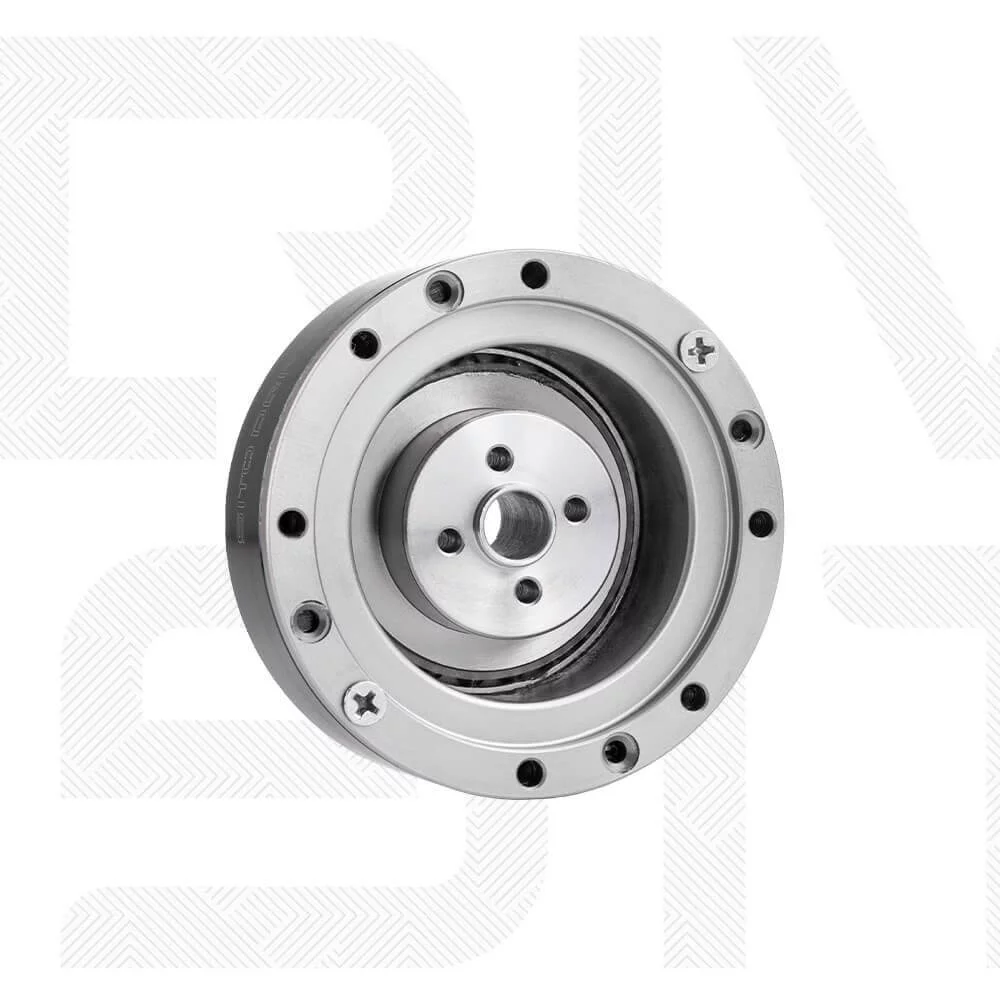

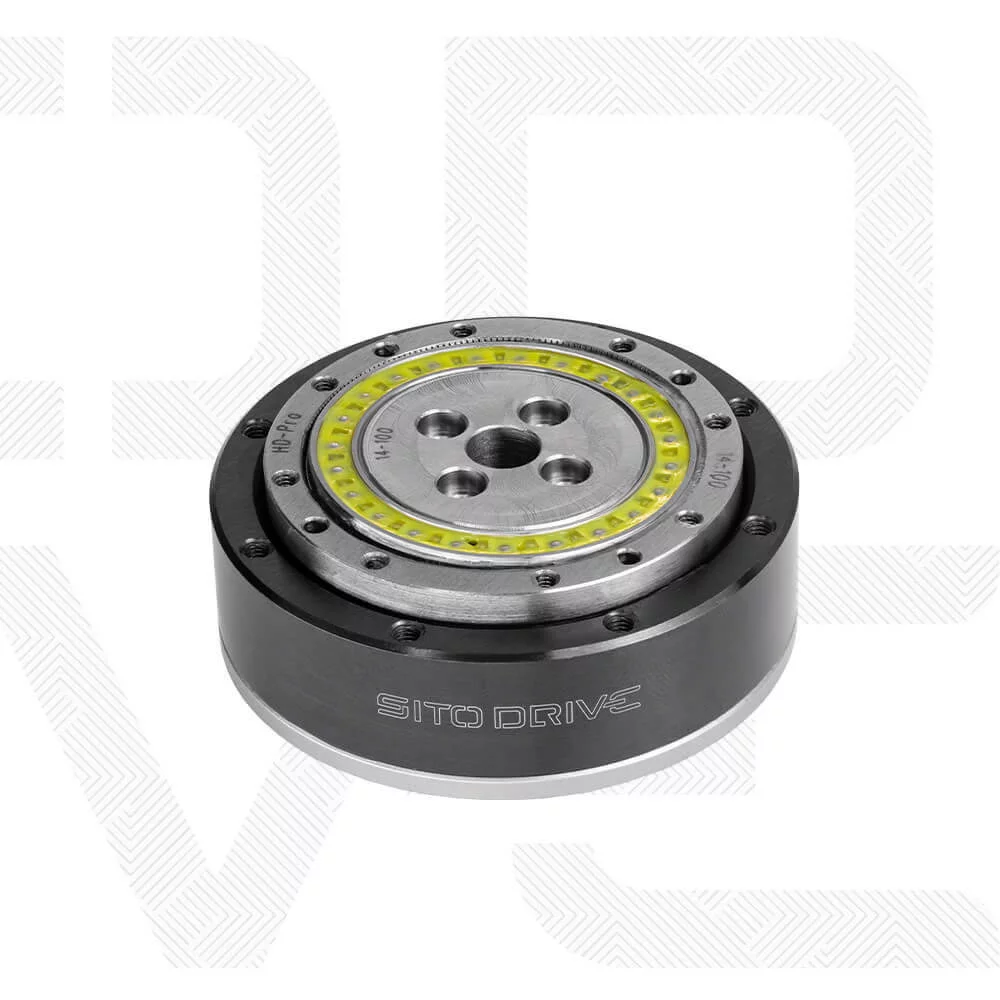

    SitoDrive Harmonic Drive HD-11 Pro Micro Reducer Nema 17 BLDC Motor 100:1 Speed Ratio 52mm Ultra-Compact for Camera Slider
    SitoDrive Harmonic Drive HD-11 Pro Micro Reducer Nema 17 BLDC Motor 100:1 Speed Ratio 52mm Ultra-Compact for Camera Slider
    SitoDrive Harmonic Drive HD-11 Pro Micro Reducer Nema 17 BLDC Motor 100:1 Speed Ratio 52mm Ultra-Compact for Camera Slider
    SitoDrive Harmonic Drive HD-11 Pro Micro Reducer Nema 17 BLDC Motor 100:1 Speed Ratio 52mm Ultra-Compact for Camera Slider
    SitoDrive Harmonic Drive HD-11 Pro Micro Reducer Nema 17 BLDC Motor 100:1 Speed Ratio 52mm Ultra-Compact for Camera Slider
    SitoDrive Harmonic Drive HD-11 Pro Micro Reducer Nema 17 BLDC Motor 100:1 Speed Ratio 52mm Ultra-Compact for Camera Slider

    SitoDrive Harmonic Drive HD-11 Pro Micro Reducer Nema 17 BLDC Motor 100:1 Speed Ratio 52mm Ultra-Compact for Camera Slider

    10% Cashback；Import charges included

    Amount:
    0 0
    • Speed Ratio
      50
      100
    1
    Add to Cart
    Buy Now

    HD-11 Pro

    HD系列谐波减速器

    直径 : 52 mm

    厚度 : 18.4 mm

    重量 : 0.17 kg

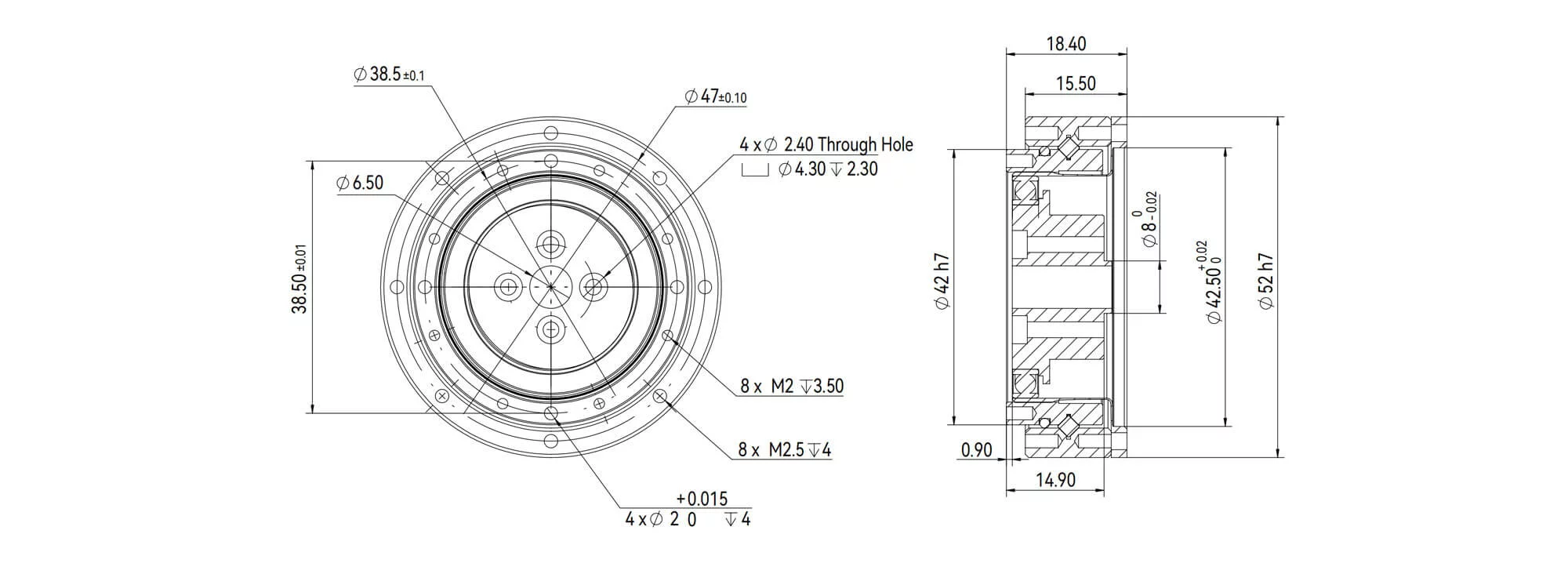

    孔位安装平面图

    单位 : mm

    HD-11 Pro 参数

    减速比

    30

    50

    80

    100

    120

    输入2000r/min时的额定转矩 [ Nm ]

    4.5

    7.4

    起动停止时的容许峰值转矩 [ Nm ]

    13

    19

    平均负载转矩的容许最大值 [ Nm ]

    6.8

    10.8

    瞬间容许最大转矩 [ Nm ]

    25

    40

    容许最高输入转速 [ rpm ]

    8500

    8500

    容许平均转速 [ rpm ]

    3500

    3500

    转动惯量 [ Ix10^-4 kgm^2 ]

    0.021

    0.021

    背隙 [ Arcsec ]

    ≤20

    ≤10
