    Home Sito TA80 24V Can Dual Encoder High Torque Brushless DC Servo Motor Small Harmonic Drive 100 Reducer Gearmotor Robot Actuator
    Sito TA80 24V Can Dual Encoder High Torque Brushless DC Servo Motor Small Harmonic Drive 100 Reducer Gearmotor Robot Actuator
    Sito TA80 24V Can Dual Encoder High Torque Brushless DC Servo Motor Small Harmonic Drive 100 Reducer Gearmotor Robot Actuator
    Sito TA80 24V Can Dual Encoder High Torque Brushless DC Servo Motor Small Harmonic Drive 100 Reducer Gearmotor Robot Actuator
    Sito TA80 24V Can Dual Encoder High Torque Brushless DC Servo Motor Small Harmonic Drive 100 Reducer Gearmotor Robot Actuator
    Sito TA80 24V Can Dual Encoder High Torque Brushless DC Servo Motor Small Harmonic Drive 100 Reducer Gearmotor Robot Actuator
    Sito TA80 24V Can Dual Encoder High Torque Brushless DC Servo Motor Small Harmonic Drive 100 Reducer Gearmotor Robot Actuator
    Sito TA80 24V Can Dual Encoder High Torque Brushless DC Servo Motor Small Harmonic Drive 100 Reducer Gearmotor Robot Actuator

    Sito TA80 24V Can Dual Encoder High Torque Brushless DC Servo Motor Small Harmonic Drive 100 Reducer Gearmotor Robot Actuator

    10% Cashback；Import charges included

    Amount:
    0 0
    • Gear Count
      50
      100
    1
    Add to Cart
    Buy Now

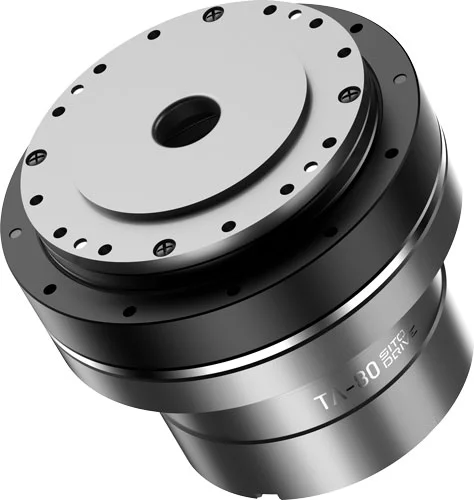

    TA-80

    TITAN SMART ACTUATOR

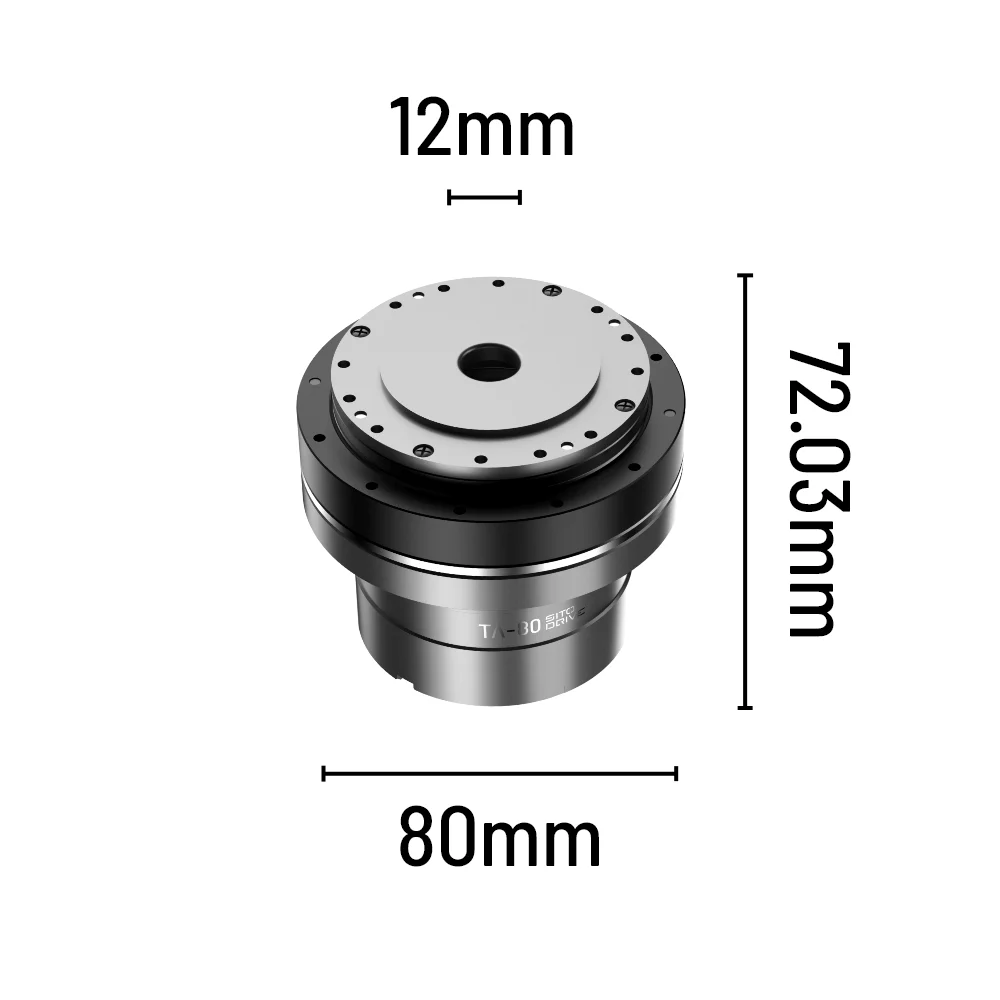

    Diameter: 80mm

    Length: 72.03mm

    Weight: 1.05kg-1.1kg

    Hollow hole diameter: 12mm

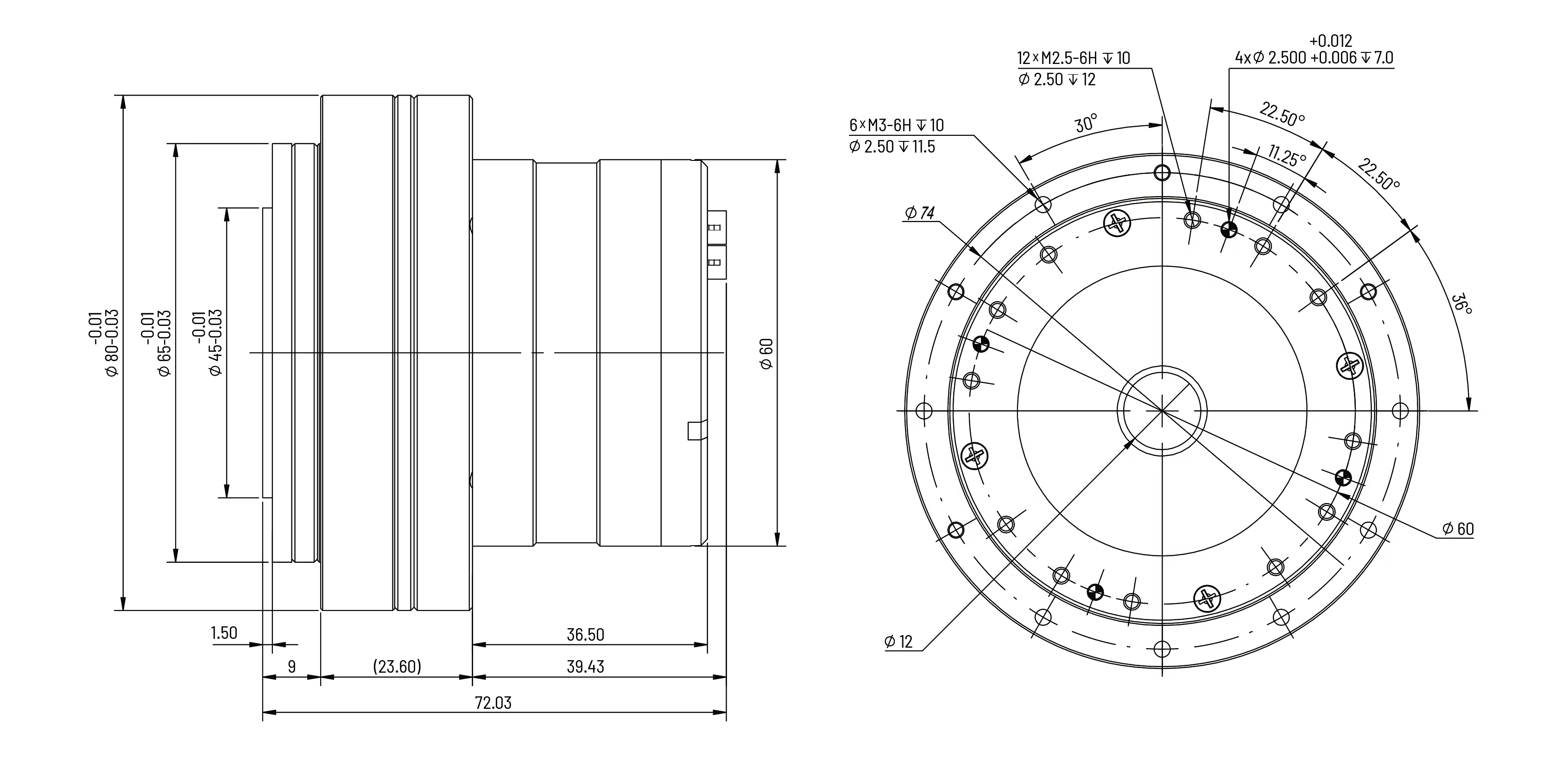

    Hole installation Diagram

    Unit:mm

    TA-80 Parameter

    Gear Ratio

    50

    100

    Rated Torque at 2000 rpm [Nm]

    17

    28

    Limit for Repeated Peak Torque [Nm]

    39

    57

    Limit for Momentary Peak Torque [Nm]

    69

    95

    Working Temperature [°C]

    -40-80

    -40-80

    Repeat Positioning Accuracy [arcsec]

    25

    15

    Absolute Positioning Accuracy [arcsec]

    100

    90

    Maximum Output Speed [rpm]

    80

    40

    Supply Voltage [V]

    10-60 Recommended 24V

    10-60 Recommended 24V

    Rated Power [W]

    90

    100
