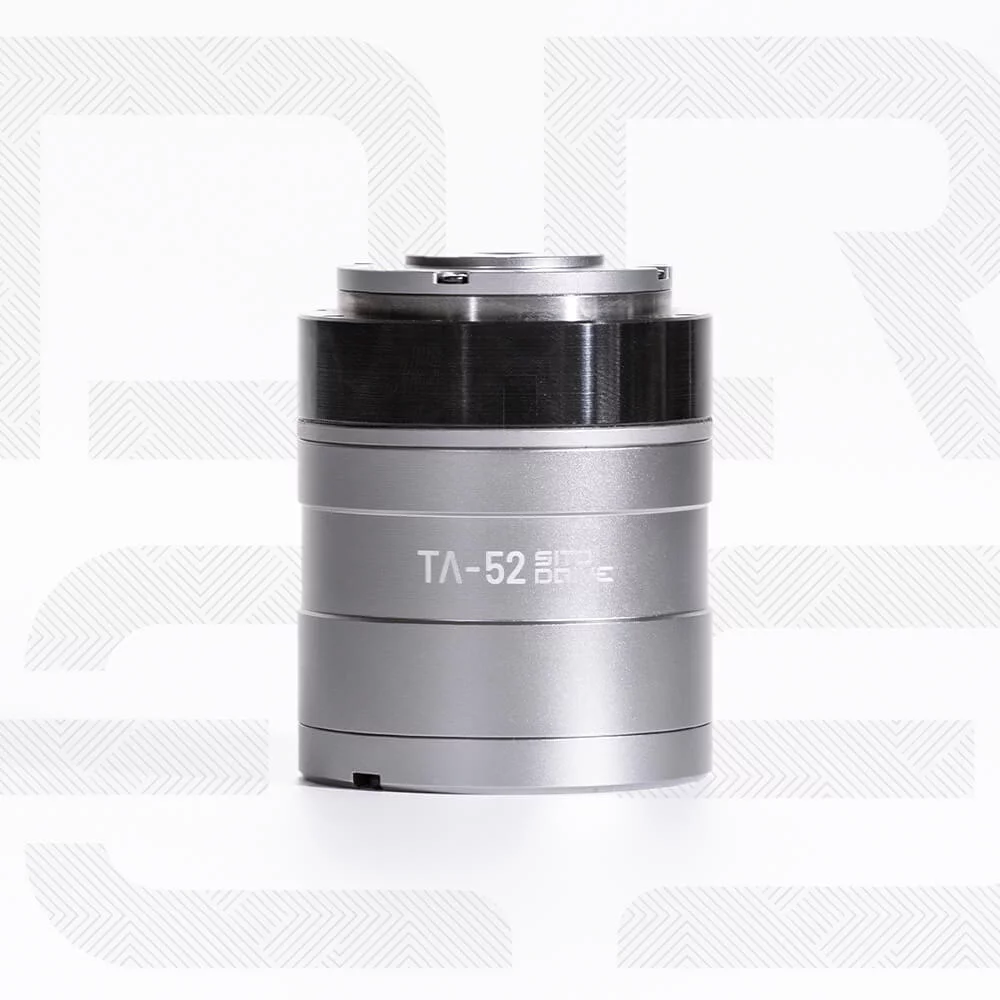

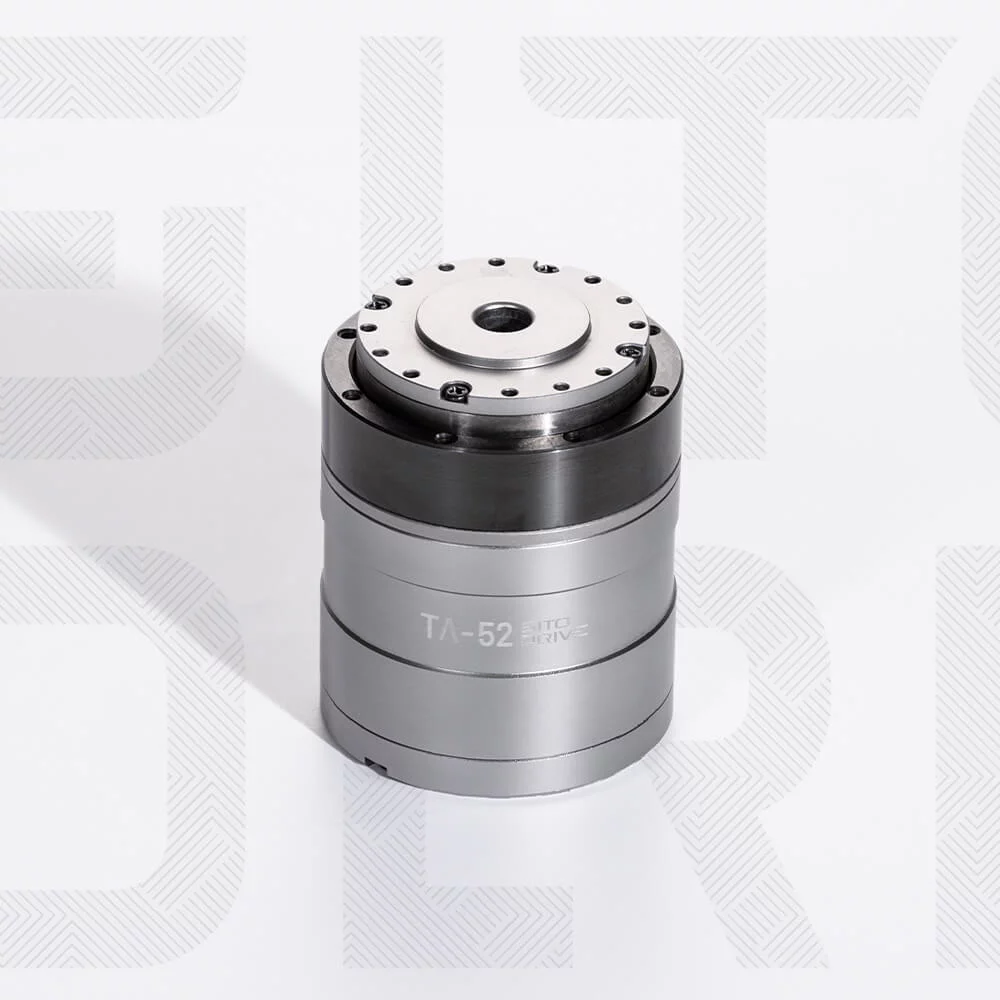

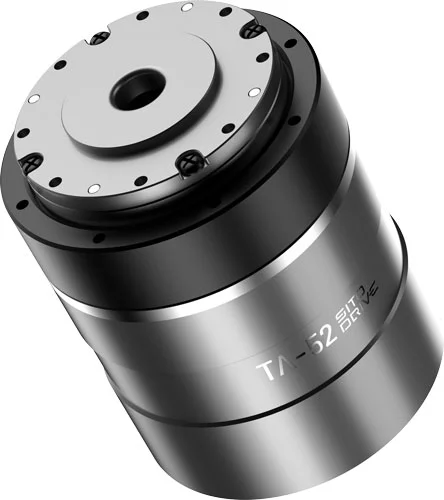

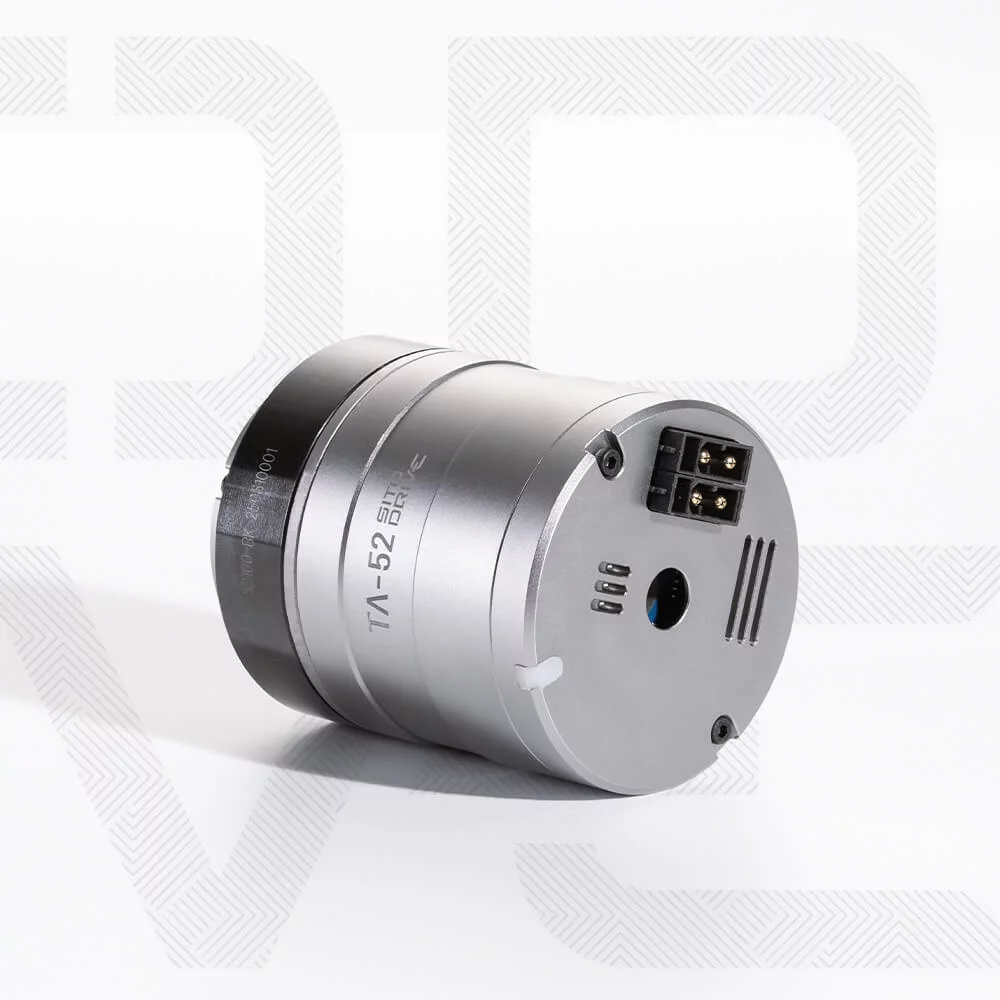

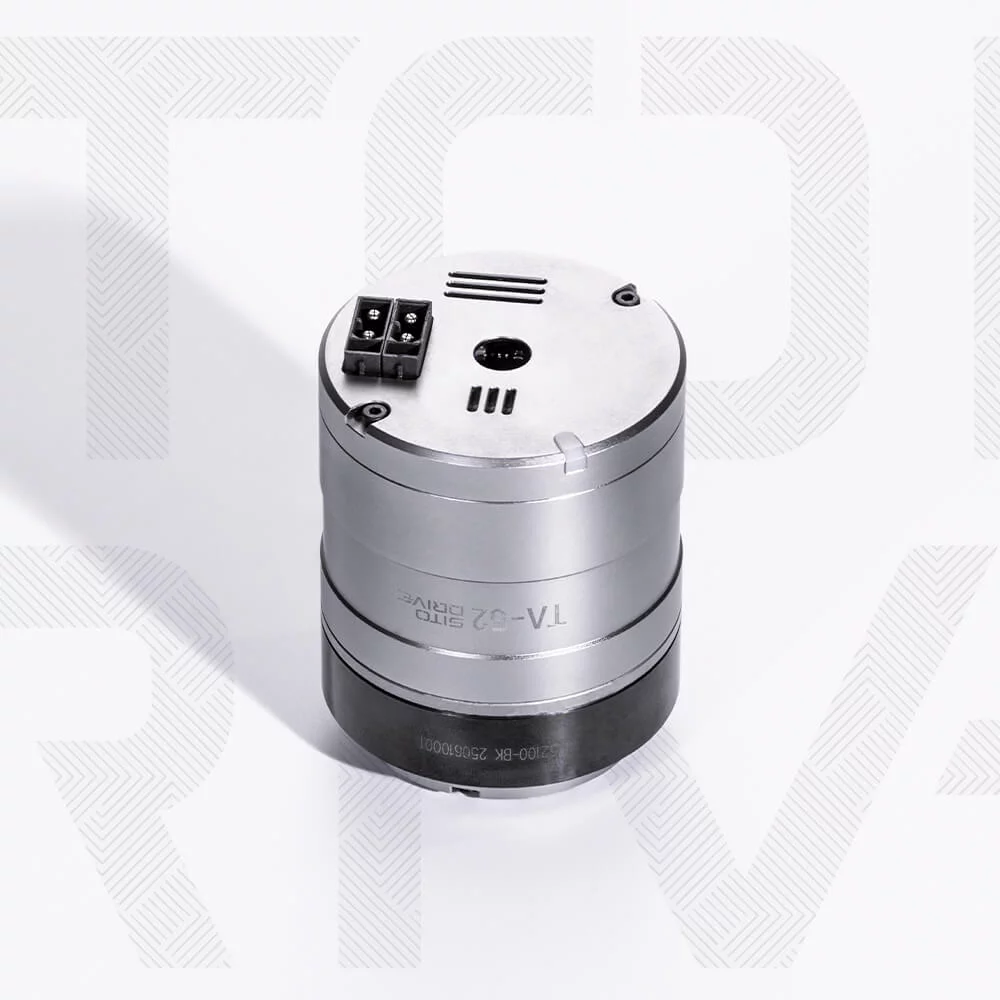

TA-52
TITAN SMART ACTUATOR

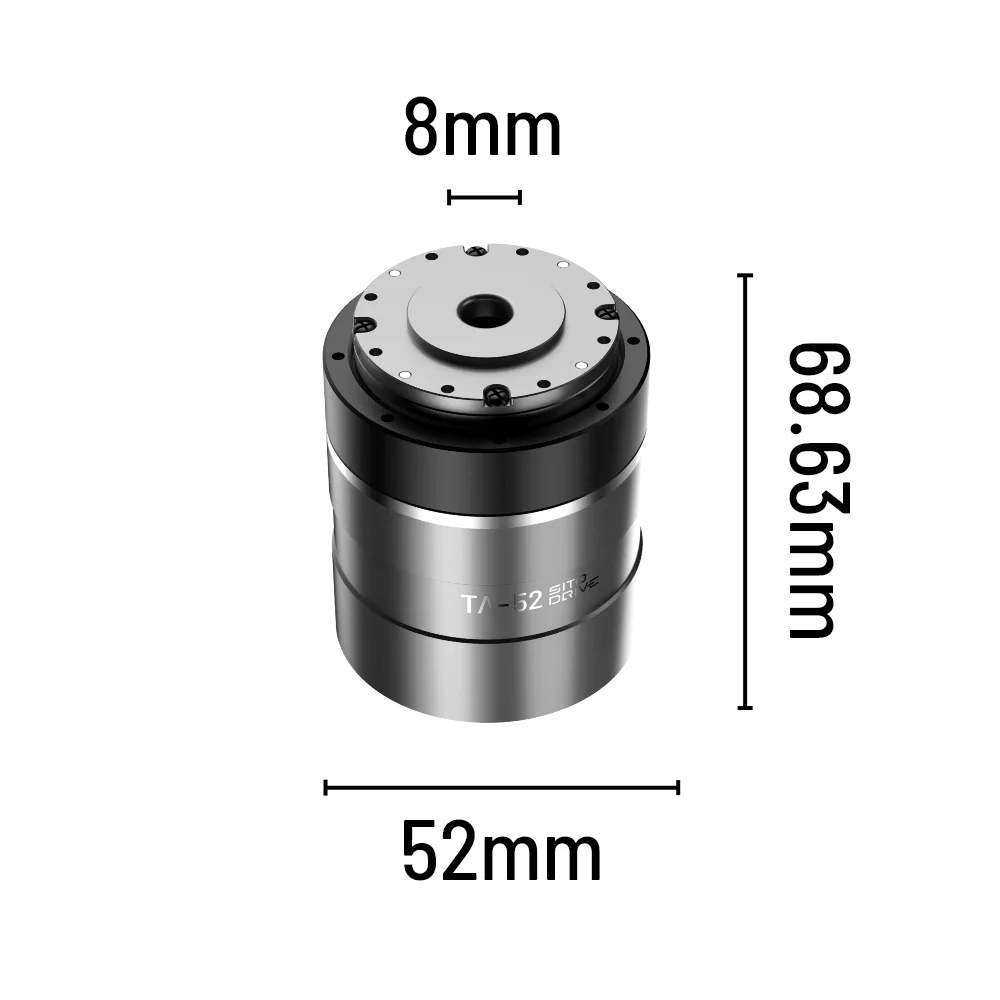

Diameter: 52mm
Length: 68.63mm
Weight: 0.47kg-0.5kg

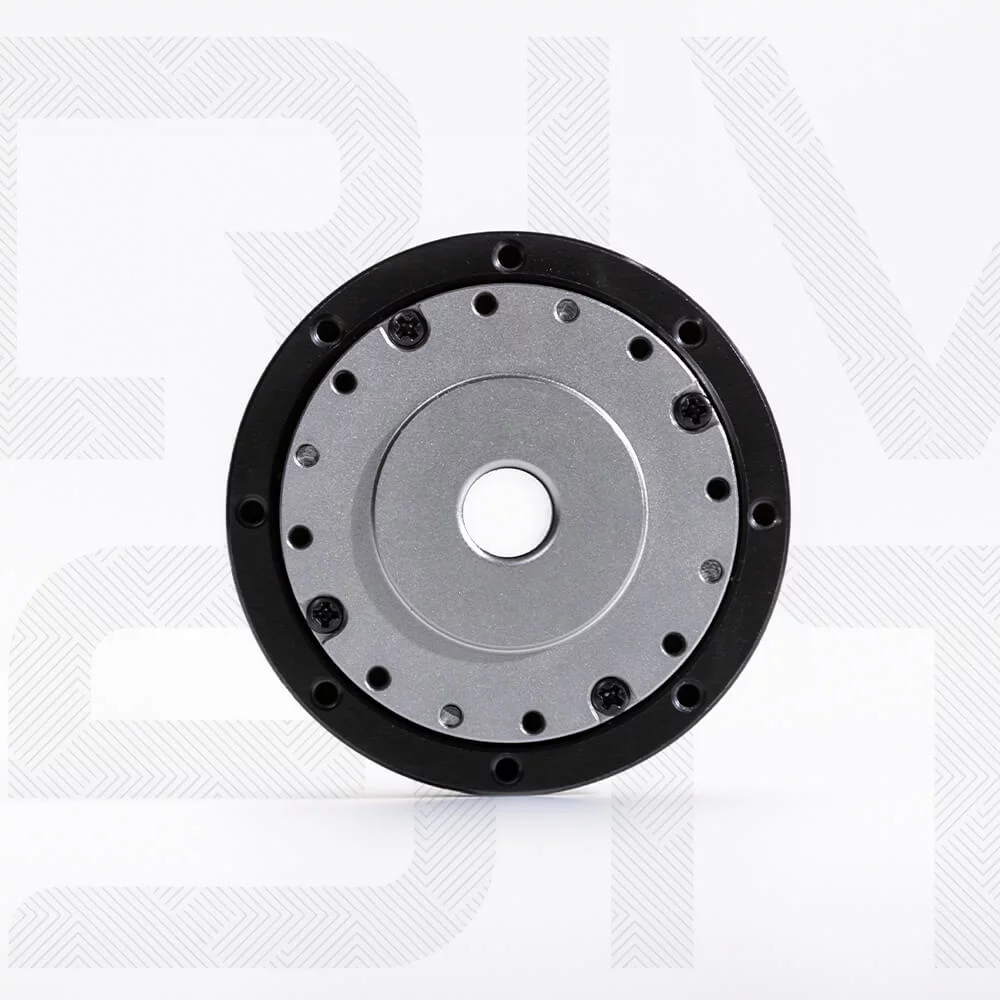

Hollow hole diameter: 8mm

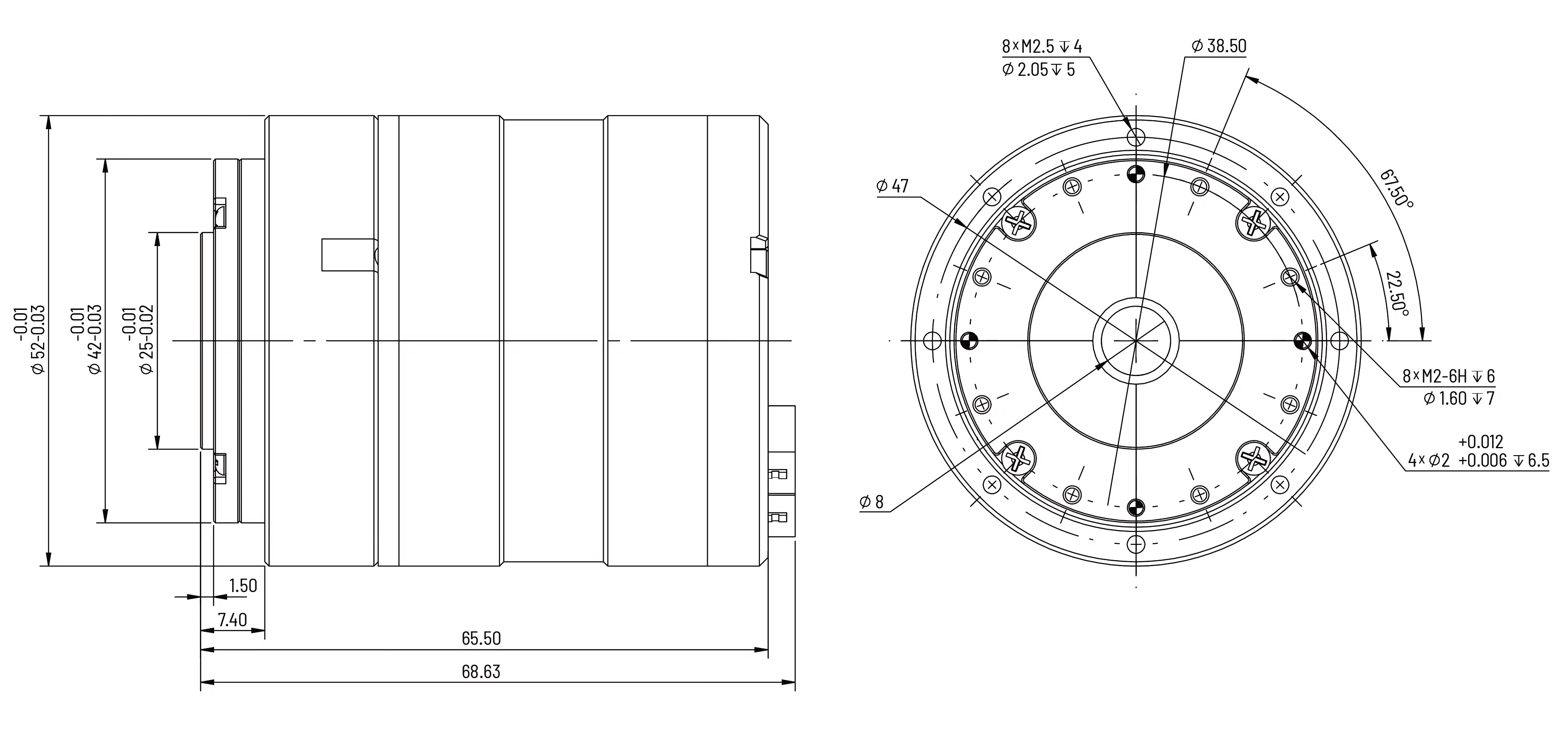

Hole installation Diagram
Unit:mm
TA-52 Parameter
Gear Ratio
50
100
Rated Torque at 2000 rpm [Nm]
3.7
5.4
Limit for Repeated Peak Torque [Nm]
12
19
Limit for Momentary Peak Torque [Nm]
17
30
Working Temperature [°C]
-40-80
Repeat Positioning Accuracy [arcsec]
35
18
Absolute Positioning Accuracy [arcsec]
120
Maximum Output Speed [rpm]
80
40
Supply Voltage [V]
10-60 Recommended 24V
Rated Power [W]
25
